Articulated Boom Lifts

Genie 01

Genie®Z® articulating boom lifts provide the ability to lift up, over and out with precise positioning for ultimate versatility in hard-to-access work areas. Genie introduced the articulating Z-boom in 1985 with the Genie Z-30/20 model — a product that launched the company into the rental segment. These lifts gained incredible popularity due to their unique “up-and-over” capabilities to navigate obstacles at height.

Z30/20N RJ

With its new-generation AC power system, the Genie® Z®-30/20 N RJ electric articulating boom lift is a quiet, emission-free, cost-efficient solution ideal for sensitive, congested and urban jobsites. For increased versatility it features a rotating jib offering industry-leading horizontal rotation as well as standard vertical reach. Narrow dimensions make it easy to drive through standard doorways, to work around obstacles and access overhead tasks from aisles or areas where space is limited.

Overview
• Zero tailswing and zero front arm swing in stowed and raised positions allow for work in tight spaces
• Compact chassis for narrow aisle access
• 35% gradeability and 4.8 km/h (3.3 mph) travel speed for excellent drive performance
• 1.22 m (4 ft) articulating jib with a 139° vertical rotation and a 180° horizontal rotation for increased versatility
• 180° hydraulic platform rotation and self-levelling platform for easy operation

Max Working Height

10.89 m

Max Horizontal Reach

6.25 m

Max Up and Over Clearance (riser extended)

3.86 m

Platform Capacity

227 kg

Z34/22N – Z34/22 IC

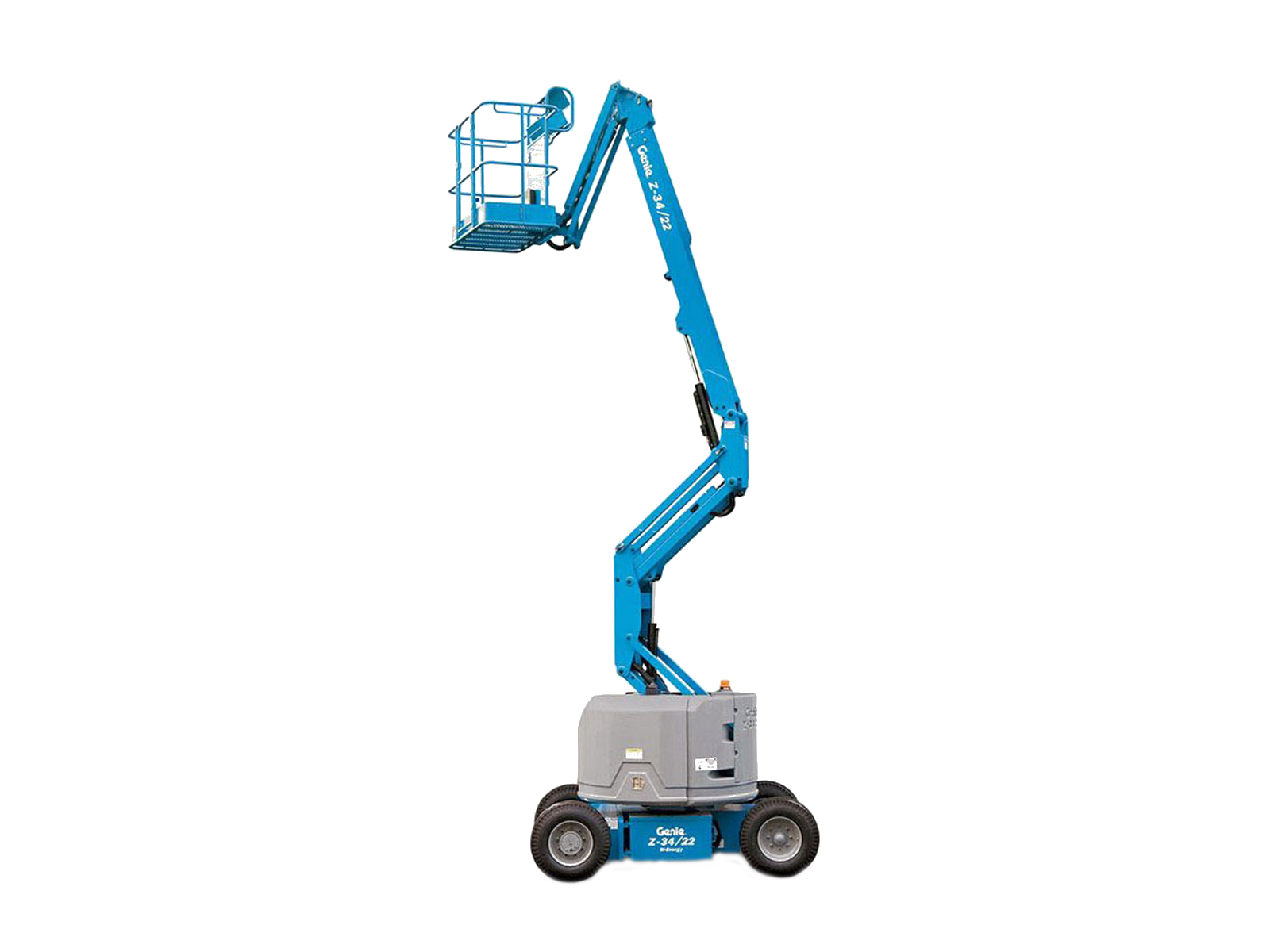

The Genie® Z®-34/22 N articulating boom lift offers quiet, emission-free operation. With this narrow electric lift, operators can easily drive through standard double doorways, work close to buildings or around obstacles and access overhead work from aisles or other congested areas.

The Genie® Z®-34/22 N is an Electric Machine

Overview
• Zero tailswing in stowed and raised positions allow for work in tight spaces
• Compact chassis for narrow aisle access
• 35% gradeability for excellent drive performance
• 1.22 m (4 ft) articulating jib with a 139° range of motion to accurately position workers
• 180° hydraulic platform rotation and self-levelling platform for easy operation

Max Working Height

12.52 m

Max Horizontal Reach

6.78 m

Max Up and Over Clearance (riser extended)

4.65 m

Platform Capacity

227 kg

Ideal for outdoor construction and industrial applications, the engine-powered Genie® Z®-34/22 IC articulating boom lift provides lifting versatility with a combination of up, out and over positioning capabilities and outreach that’s second to none. This model is available in 4WD.

The Genie® Z®-34/22 IC is an Ignition Powered Machine

Overview
• Zero tailswing and nose swing in all positions allow excellent manoeuvrability in confined areas
• Two speed hydraulic motors drive and efficient power transmission for optimum speed and torque on rough terrain
• 4WD and up to 45% gradeability for superior terrainability
• Dual parallelogram and fully proportional controls for precise boom positioning and smooth performance
• 1.22 m (4 ft) articulating jib with a 139° vertical rotation and 180° hydraulic platform rotation to accurately position workers

Max Working Height

12.52 m

Max Horizontal Reach

6.78 m

Max Up and Over Clearance (riser extended)

4.65 m

Platform Capacity

227 kg

Z40/23N RJ

Narrow, compact and equipped with the latest generation of eco-friendly AC drive systems, the Genie® Z™-40/23 N RJ electric articulating boom lift is a quiet, emission-free, cost-efficient solution ideal for sensitive, congested and urban work environments. It features a rotating jib offering industry-leading horizontal rotation as well as the standard vertical reach for increased jobsite versatility.

Overview
• Minimal tailswing, tight turning radius and compact dimensions for easy manoeuvring in confined jobsites
• Compact chassis for narrow aisle access
• 30% gradeability and 7.2 km/h (4.5 mph) travel speed for excellent drive performance
• AC drive system for enhanced driving performance and simplified maintenance
• 1.22 m (4 ft) articulating jib with a 128° vertical rotation and a 180° horizontal rotation for increased versatility
• 180° hydraulic platform rotation and self-levelling platform for easy operation

Max Working Height

14.32 m

Max Horizontal Reach

6.91 m

Max Up and Over Clearance (riser extended)

6.48 m

Platform Capacity

227 kg

Z45/25J DC

The Genie® Z®-45/25J DC electric articulating boom lift offer quiet, emission-free operation. With this Genie electric boom lift, operators can easily work close to buildings or around obstacles, and access overhead work from aisles and other congested areas.

Overview
• Zero tailswing and tight turning radius for easy manoeuvring in confined jobsites
• 30% gradeability and 4.8 km/h (3 mph) travel speed for excellent drive performance
• 1.52 m (5 ft) articulating jib with a 135° vertical rotation to accurately position workers
• 160° hydraulic platform rotation and self-levelling platform for easy operation
• Large 1.83 m (6 ft) all-steel platform lifts up to 227 kg (500 lb)

Max Working Height

15.94 m

Max Horizontal Reach

6.75 m

Max Up and Over Clearance (riser extended)

7.24 m

Platform Capacity

227 kg

Z45 FE

Two machines in one, the Genie® Z®-45 FE hybrid articulating boom lift is the ideal, environment-friendly solution for increased efficiency and low cost of operation. In ‘all-electric’ mode it offers a full work day of emissions-free run time on a single battery charge. In ‘hybrid’ mode, it offers one week of run time with a single tank of diesel.

Overview
• Full-time active oscillating axle helps maintain traction on rough terrain
• 4WD and 45% gradeability for superior terrainability
• High-efficiency AC drive system for enhanced driving performance and simplified maintenance
• Two modes of operation: all-electric and Hybrid, with outstanding efficiency and jobsite versatility
• Dual parallelogram and fully proportional controls for precise boom positioning and smooth performance
• 5 ft (1.52 m) articulating jib with a 135° vertical rotation to accurately position workers

Max Working Height

15.92 m

Max Horizontal Reach

6.94 m

Max Up and Over Clearance (riser extended)

7.50 m

Platform Capacity

300 kg

Z45 XC

The Genie® Z®-45 XC™ articulating boom is the redesigned Xtra Capacity™ version of the popular rough-terrain Genie Z-45/25J RT diesel powered articulating boom. It can perform a wider range of heavier lift tasks on construction and industrial jobsites thanks to its dual lift capacity.

Overview
• Full-time active oscillating axle helps maintain traction on rough terrain
• 4WD and 45% gradeability for superior terrainability
• Dual parallelogram and fully proportional controls for precise boom positioning and smooth performance
• 1.52 m (5 ft) articulating jib with a 135° vertical rotation to accurately position workers
• Dual lifting capacity: unrestricted platform capacity of 300 kg (660 lb) and restricted capacity of 454 kg (1,000 lb)

Max Working Height

15.87 m

Max Horizontal Reach

7.55 m

Max Up and Over Clearance (riser extended)

7.44 m

Platform Capacity

300 kg Unrestricted, 454 kg Restricted

Z51/30J RT

The Genie® Z®-51/30J RT articulating boom lift provides lifting versatility with a combination of up, out and over positioning capabilities with outreach that’s second to none. Ideal for outdoor construction and industrial applications, this model’s tight turning radius and zero tailswing make for easy manoeuvring in confined work areas.

Overview
• Full-time active oscillating axle helps maintain traction on rough terrain
• 4WD and 45% gradeability for superior terrainability
• Dual parallelogram and fully proportional controls for precise boom positioning and smooth performance
• 1.52 m (5 ft) articulating jib with a 135° vertical rotation to accurately position workers
• 160° hydraulic platform rotation and self-levelling platform for precise platform positioning and easy operation

Max Working Height

17.59 m

Max Horizontal Reach

9.37 m

Max Up and Over Clearance (riser extended)

7.39 m

Platform Capacity

227 kg

Z60 FE

The Genie® Z®-60 FE is two machines in one. The ‘full electric’ mode offers a full-day, emission-free run time on a single charge. The ‘hybrid’ mode offers one week of run time with a single tank of diesel. The ideal, environmentally-friendly solution for increased efficiency and a lower cost of operation.

Overview
•Full-time active oscillating axle helps maintain traction on rough terrain
•4WD and 45% gradeability for superior terrainability
•High-efficiency AC drive system for enhanced driving performance and simplified maintenance
Two modes of operation: all-electric and Hybrid, with outstanding efficiency and jobsite versatility
•Dual parallelogramme and fully proportional controls for precise boom positioning and smooth performance
•1.52 m (5 ft) articulating jib with a 135° range of motion to accurately position workers
•Genie Fast Mast™ boom system allows operators to descend and retrieve materials and quickly return to working height

Max Working Height

20.16 m

Max Horizontal Reach

11.15 m

Max Up and Over Clearance (riser extended)

7.39 m

Platform Capacity

227 kg

Z65/40

Ideal for outdoor construction and industrial applications, the Genie® Z®-62/40 articulating boom lift with rough terrain capabilities provides lifting versatility with a combination of up, out and over positioning capabilities with outreach that’s second to none.

Overview
• Full-time active oscillating axle helps maintain traction on rough terrain
• 4WD and 45% gradeability for superior terrainability
• Dual parallelogram and fully proportional controls for precise boom positioning and smooth performance
• 1.52 m (5 ft) articulating jib with a 135° vertical rotation to accurately position workers
• Genie Fast Mast™ boom system allows operators to descend and retrieve materials and quickly return to working height

Max Working Height

20.87 m

Max Horizontal Reach

12.42 m

Max Up and Over Clearance (riser extended)

7.8 m

Platform Capacity

227 kg

Z80/60

With outreach that’s second to none, the Genie® Z®-80/60 articulating boom lift delivers outstanding lifting versatility with up, out and over positioning capabilities — ideal for outdoor construction and industrial applications.

Overview
• Full-time active oscillating axle helps maintain traction on rough terrain
• 4WD and full-time positive traction for a smooth ride on rough ground conditions
• Reverse-articulating secondary boom with 8.83 m (29 ft) of up and over reach and zero front arm swing
• 1.83 m (6 ft) articulating jib with a 135° vertical rotation to accurately position workers
• Genie Fast Mast™ boom system allows operators to descend and retrieve materials and quickly return to working height

Max Working Height

25.77 m

Max Horizontal Reach

18.29 m

Max Up and Over Clearance (riser extended)

8.83 m

Below Ground Reach

4.83 m

Platform Capacity

227 kg

Z135/70

Ideal for outdoor construction and industrial applications, the Genie® ZX®-135/70 articulating boom lift delivers access to up, over and out applications inaccessible by a traditional jib. Four-wheel drive and steer means that this articulating boom can handle rough jobsite ground conditions with ease.

Overview
• Mini Genie X-Chassis® system extends and retracts to provide both stability on the job and a narrow profile for transport
• 3.66 m to 6.10 m (12 ft to 20 ft) telescoping Jib-Extend® with a 110˚ vertical range of motion
• 360˚ continuous rotation turntable and 160˚platform rotation for fast, easy positioning
• Four-wheel steer with front-wheel, rear-wheel, crab and coordinated steer options available to provide additional manoeuvrability

Max Working Height

43.15 m

Max Horizontal Reach

21.26 m

Max Up and Over Clearance (riser extended)

23.01 m

Below Ground Reach

5.87 m

Platform Capacity

272 kg
