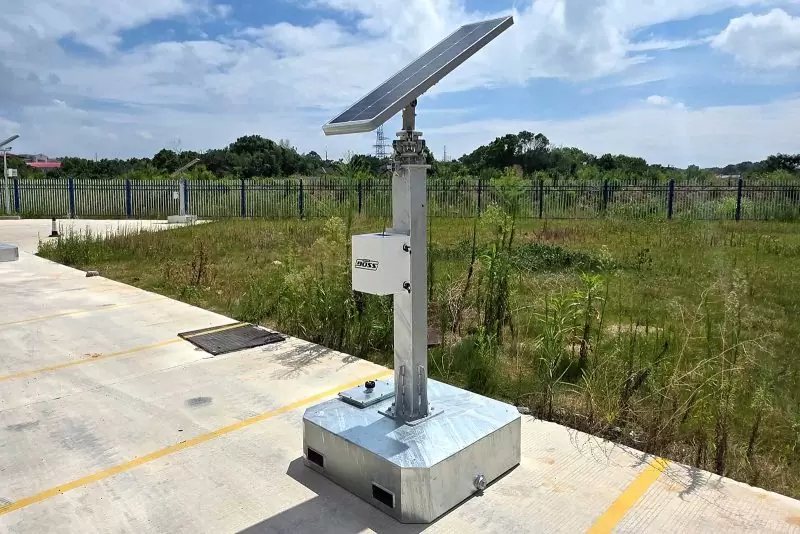

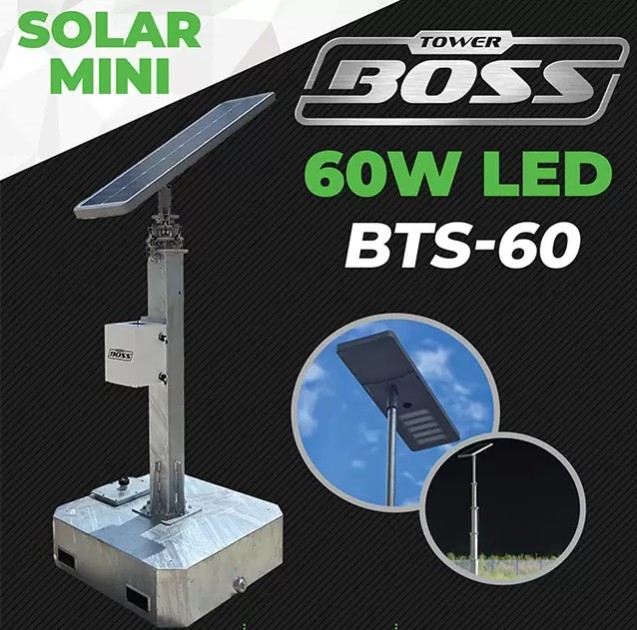

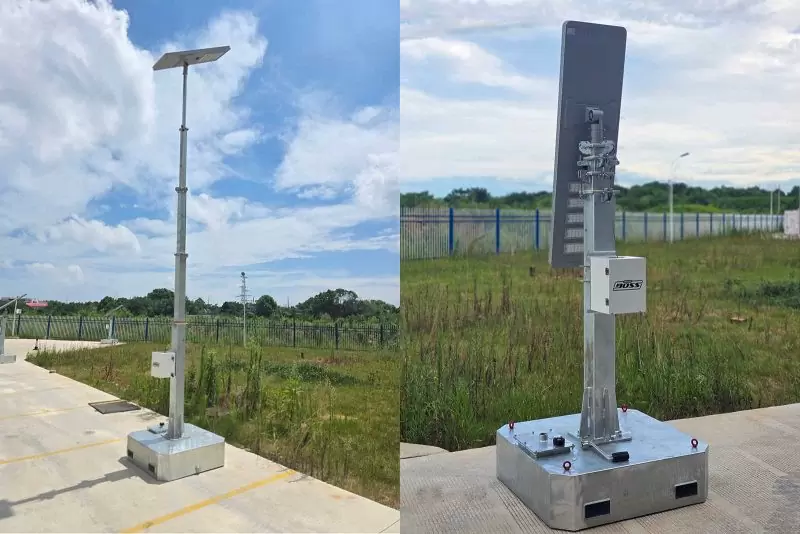

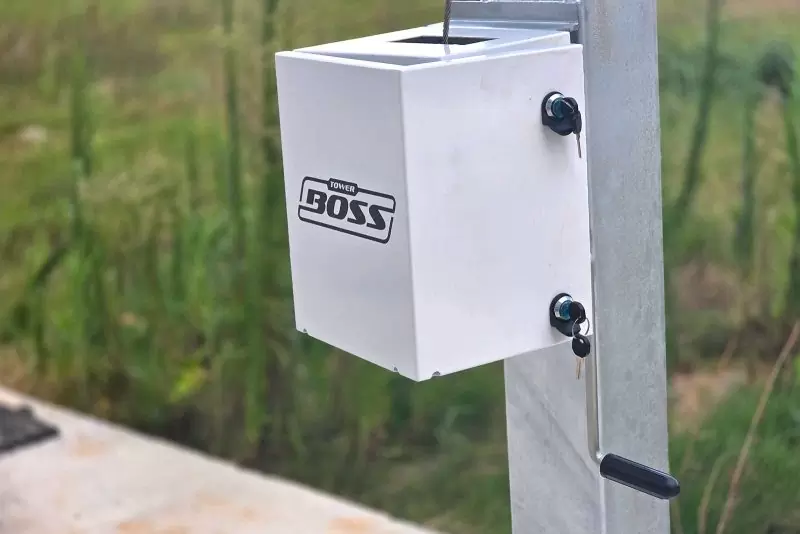

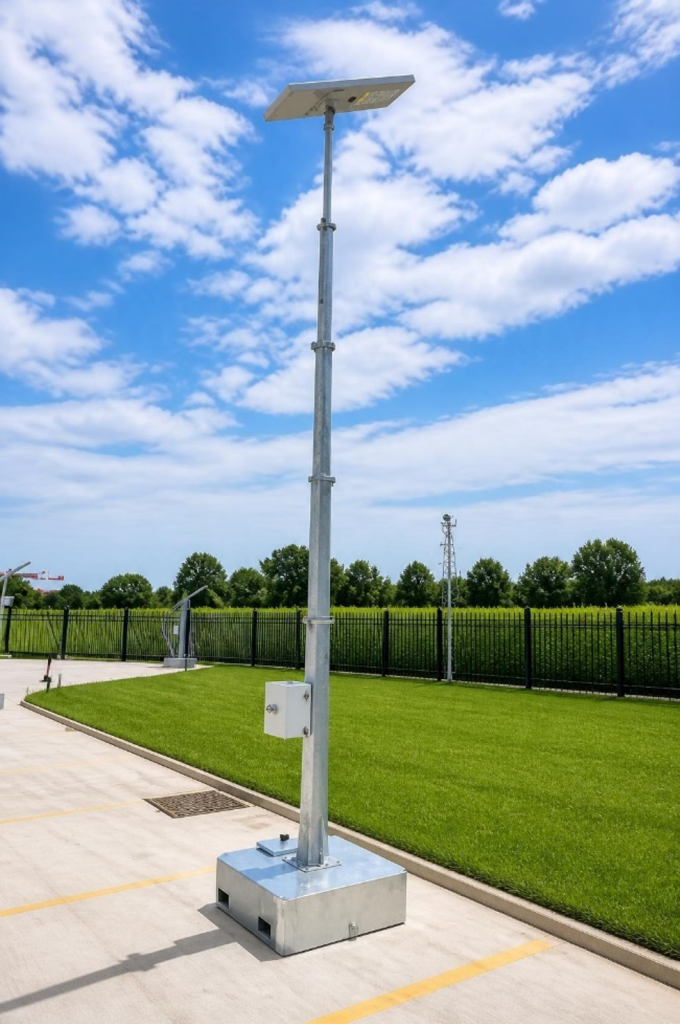

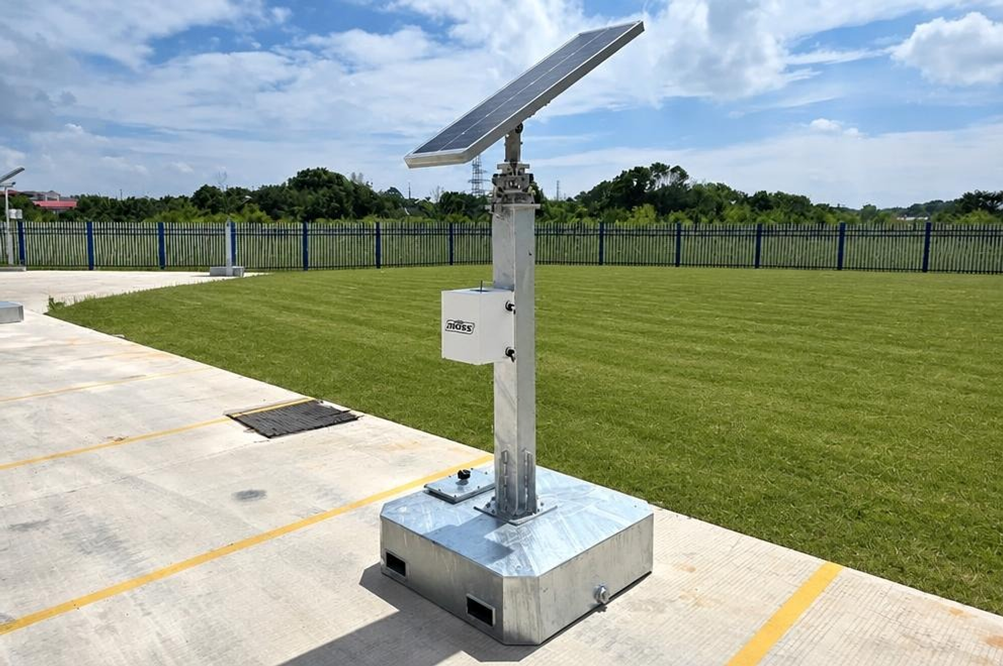

BT60
PERFORMANCE
Runtime
12 Hours
Solar Recharge Time
6 Hours
LED LIGHTS
Wattage
60w
Voltage
12v DC
Total Lumens
9,600
PIR
Yes
Motion
Yes
SOLAR
Wattage
60w
Voltage
12v
Solar Charge

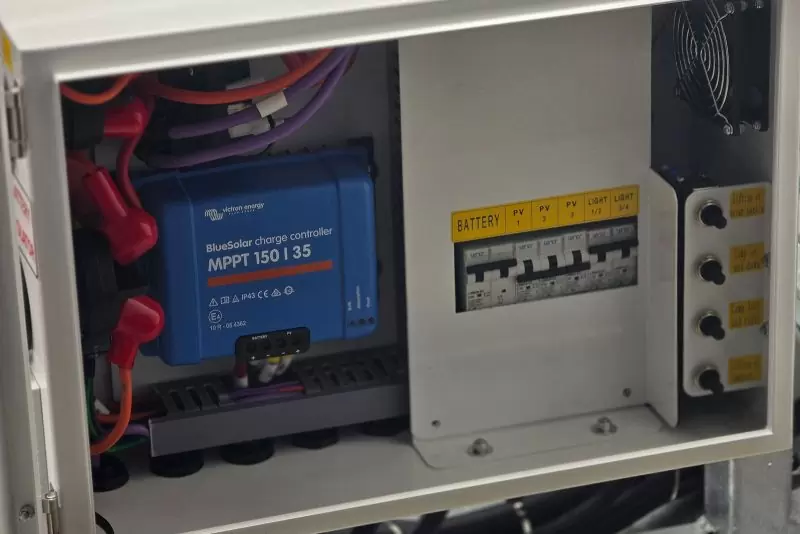

MPPT Controller
BATTERIES
Quantity
1
Battery Capacity
60Ah – 12v
WEIGHT
Weight Dry
295 Kg
Weight Wet
695 Kg
MAST
Mast
5 Sections, Galvanised
Mast Height Raised
6,420 mm
Mast Height Stowed
2,330 mm

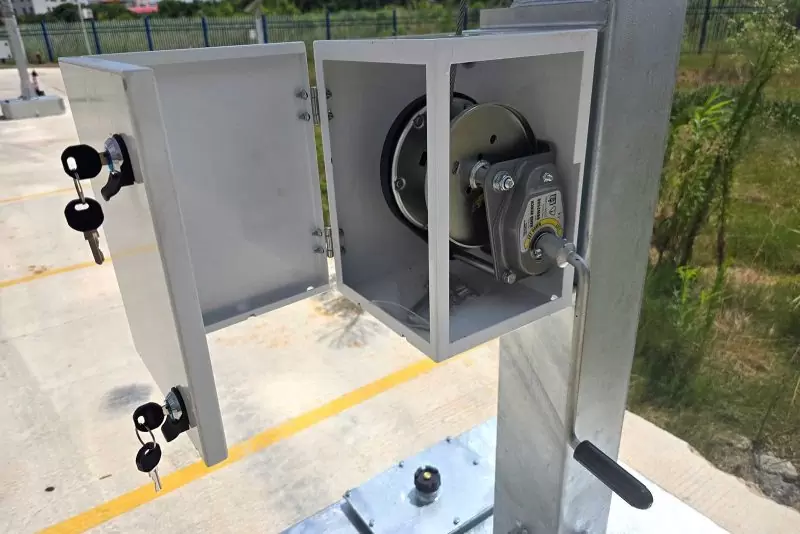

Mast Operation
Manual (Lockable)
Light Head Tilt
Manual
Light Head Rotate
Manual

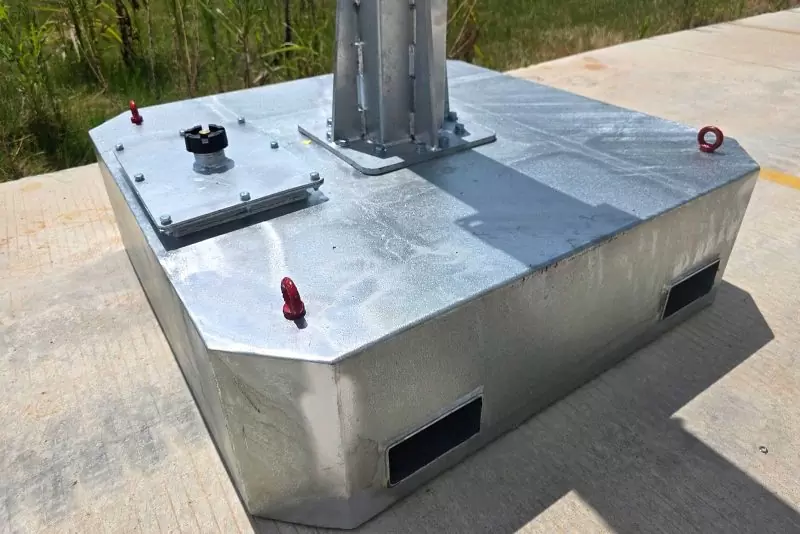

BASE
Dimensions
1050 x 1050 x 300 mm
Lifting Points
4
Drain Plug
50 mm
Inspection Hatch
1
BTS200
PERFORMANCE
Runtime
25 Hours
Solar Recharge Time
50 Hours
LED LIGHTS
Quantity
2
Wattage
100w
Total Wattage
200w
Voltage
24 v DC
Total Lumens
26,000
SOLAR
Quantity
1
Wattage
200w
Voltage
36v
Solar Charge
MPPT Controller

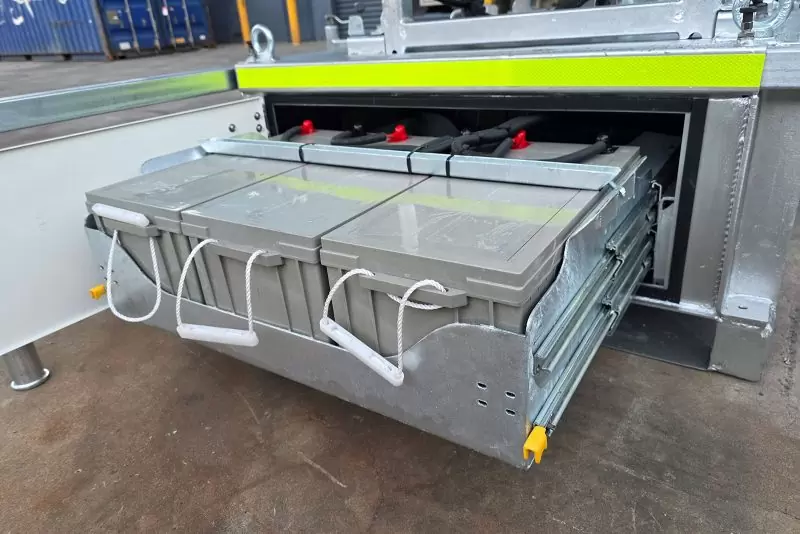

BATTERIES
Quantity
2
Battery Type
Lead Acid
Battery Capacity
250Ah-12v
Total Battery Capacity
250Ah-24v
WEIGHT
Tow Ball Weight
95 Kg
ATM
650 Kg
MAST
Mast
4 Sections, Galvanised
Mast Height Raised
5,560 mm
Mast Height Stowed
2,300 mm
Mast Operation
Manual
Light Head Tilt
Manual
Light Head Rotate
Manual
TRAILER
Chassis
Galvanised
Drawbar
Retractable Hinge Swing
Lifting Points
4
Tie Down Points
4

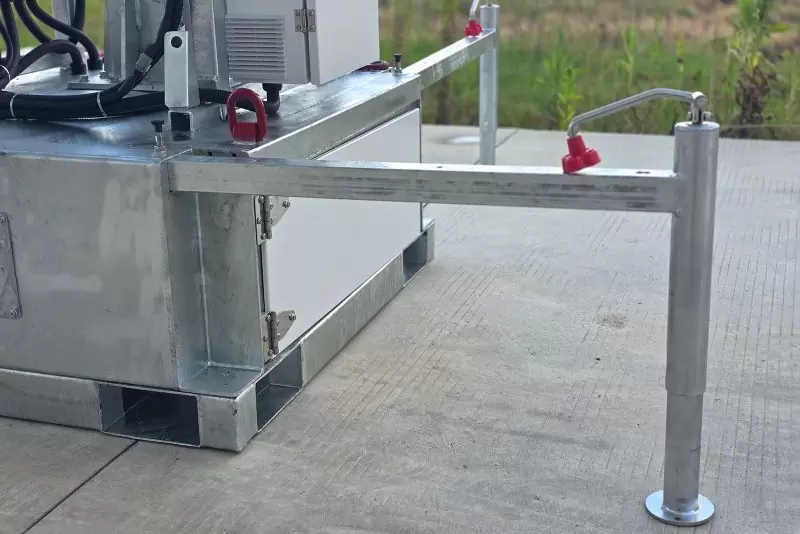

Outriggers
4 x Galvanised
Axle
Single – 1.5 Ton
Tow Hitch
50mm Ball
Brakes
Disc
Rim Size
190/70R14
Suspension
Leaf Spring
Maximum Tow Speed
90km/h

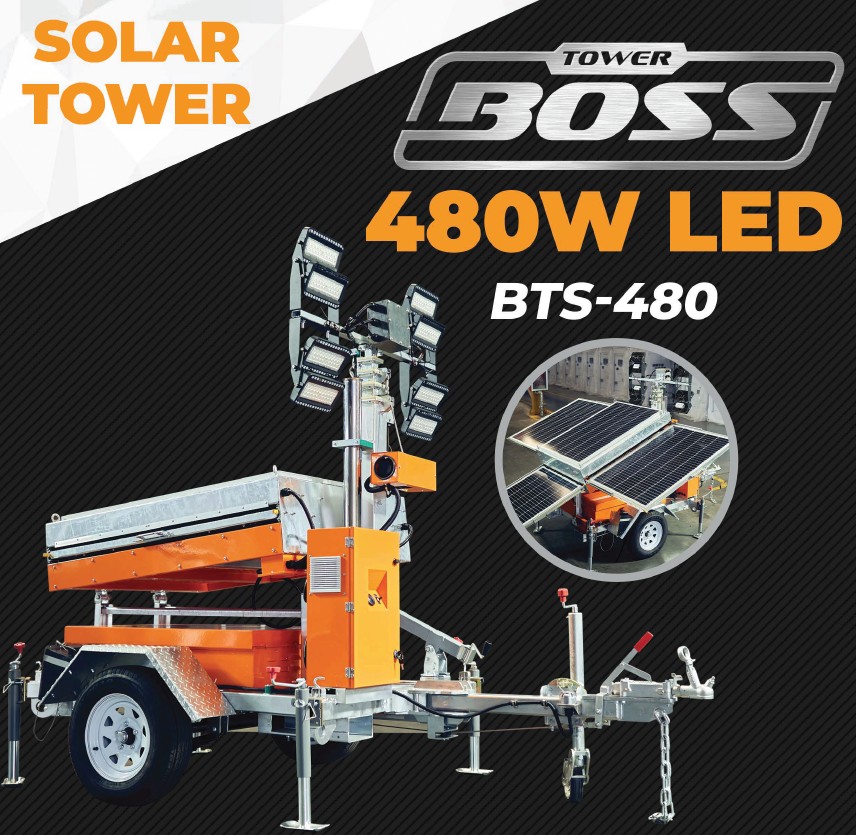

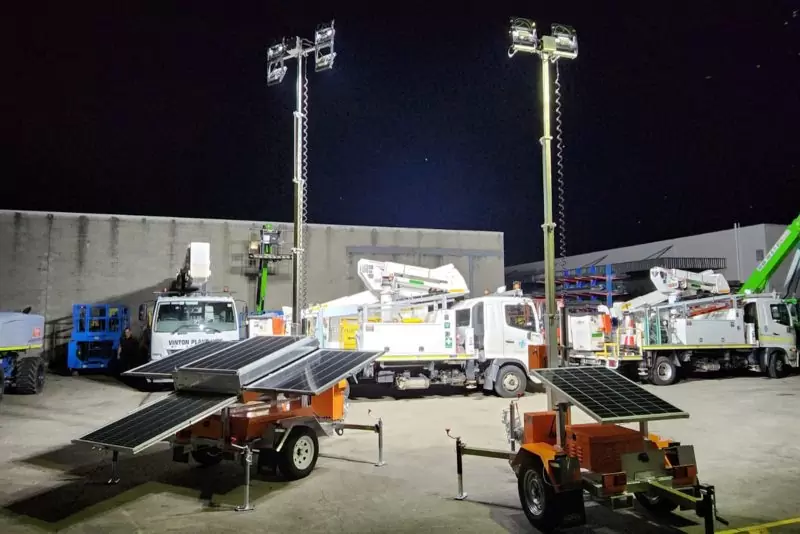

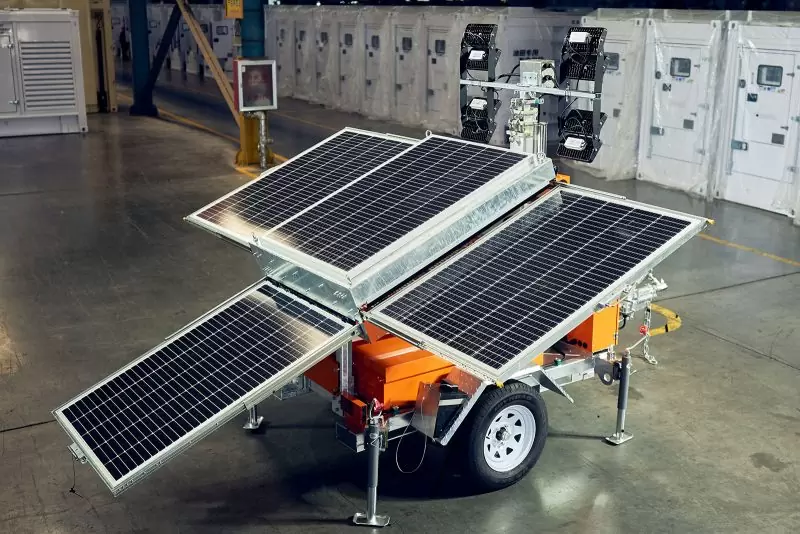

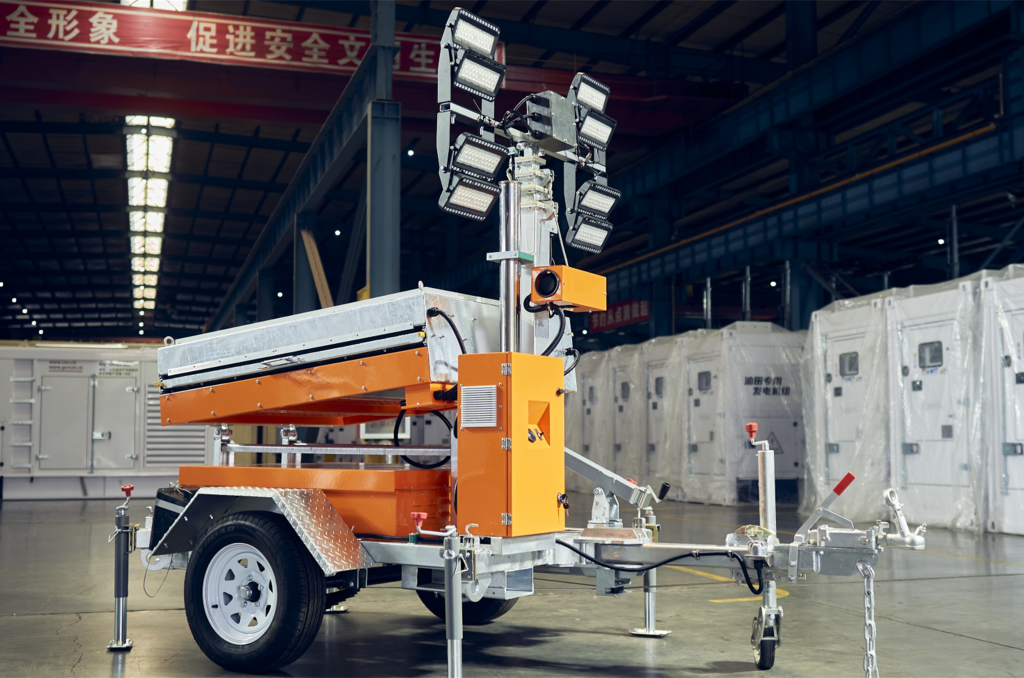

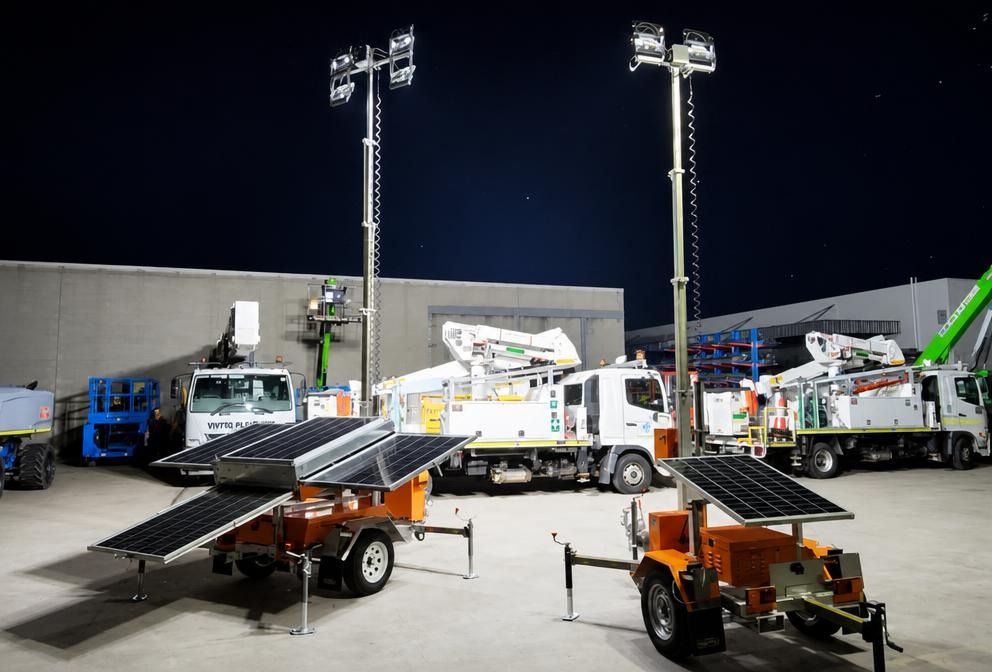

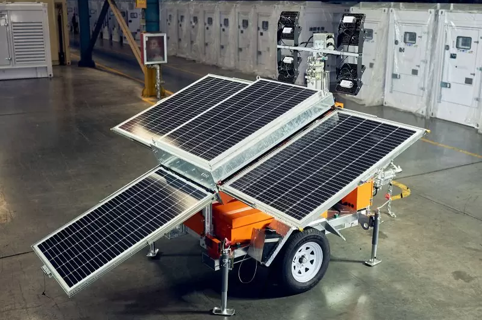

BTS480
PERFORMANCE
Runtime
42 Hours
Solar Recharge Time
50 Hours
AC Recharge Time
20 Hours
SOLAR
Quantity
4
Wattage
120w
Total Wattage
480w
Voltage
24v DC
Total Lumens
62,400
SOLAR
Quantity
4
Wattage
250w
Total Wattage
1000w
Voltage
18v
Solar Charge
MPPT Controller
BATTERIES
Battery Type
Lead Acid
Total Battery Capacity
1000Ah-24v
Quantity
8
MAST
Mast
4 Sections, Galvanised
Mast Operation
Electric
Light Head Tilt
Manual
Light Head Rotate
Manual
TRAILER
Chassis
4 Sections, Galvanised
Drawbar
Retractable Hinge Swing
Lifting Points
4
Tie Down Points
4
Outriggers
4 x Galvanised
Axle
Single – 1.5 Ton
Tow Hitch
50mm Ball
Brakes
Disc
Rim Size
190/70R14
Suspension
Leaf Spring
Maximum Tow Speed
90km/h
WEIGHT
Tow Ball Weight
117 kg
ATM
1,385 kg
