Electric Scissor Lifts

Genie 01

Genie® GS™ scissor lifts with rough terrain capabilities offer competitive lift speed and large, high capacity platforms to increase efficiency on the job site and finish working faster. They also enhance productivity by providing exceptional positive traction, speed, and gradeability. They’re available in electric or bi-energy 2WD with a front active oscillating axle or diesel true 4WD machine with an optional oscillating axle and are the perfect machines when platform workspace and lift capacity are critical both for indoor and big outdoor jobs.

Genie GS1432m

Designed for low-level access on sensitive flooring and space restricted applications, the Genie® GS™-1432m E-Drive scissor lift delivers quality and durability while improving total cost of ownership and productivity. It is equipped with an efficient, all-electric AC drive system that offers unmatched productivity for getting around indoor and outdoor jobsites in a compact, lightweight and versatile package.

Overview
• Micro-size ideal for low-level installation and maintenance jobs in tight spaces
• Zero inside turning radius
• Powerful AC electric drive motors for unmatched driving performance and industry-leading runtime per battery charge
• Low weight (1,984 lb / 900 kg), ideal for work on sensitive floors
• 500 lb (227 kg ) max lift capacity indoors and outdoors
• Fits through a doorway with fixed rails
• 2 person max. platform occupancy indoors and 1 person outdoors
• User-friendly Smart Link™ dual-zone controls for indoor and outdoor use

Max Working Height

6.30 m

Platform Capacity

277 kg

Machine Width

810 mm

Machine Length

1.40 m

Machine Weight

900 kg

Genie GS1932

The Genie® GS™-1932 slab scissor lifts boast quiet electric operation and are ideal for indoor and outdoor applications in tight spaces on firm, level surfaces.

Overview
• Genie® AC E-Drive configuration offers increased runtime, reduced maintenance costs and industry-leading performance
• Front-wheel drive and zero inside turning radius
• Easily pass through standard single or double doors
• Large platform workspace with 0.91 m (36 in) roll-out platform extension
• Swing out components trays for easy access
• User-friendly Smart Link™ dual-zone controls for indoor and outdoor use

Max Working Height

7.79 m

Platform Capacity

277 kg

Machine Width

810 mm

Machine Length

1.83 m

Machine Weight

1,329 kg

Genie GS1932m

The Genie® GS™-1932m E-Drive scissor lift is designed with a compact footprint and features to enhance productivity for operators, offering a lower total cost of ownership and higher returns for equipment owners. Its all-electric AC drive system offers productive power for getting around indoor and outdoor jobsites with quiet, zero-emissions operation.

Overview
• Micro-size ideal for low-level installation and maintenance jobs in tight spaces
• Zero inside turning radius
• Powerful AC electric drive motors for unmatched driving performance and industry-leading runtime per battery charge
• Low weight 2,880 lb (1,306 kg), ideal for work on sensitive floors
• 500 lb (227 kg ) max lift capacity indoors and outdoors
• Fits through a doorway with fixed rails
• 2 person max. platform occupancy indoors and 1 person outdoors
• User-friendly Smart Link™ dual-zone controls for indoor and outdoor use

Max Working Height

7.55 m

Platform Capacity

277 kg

Machine Width

810 mm

Machine Length

1.40 m

Machine Weight

1,306 kg

Genie GS2632

The quiet, electrically-powered Genie® GS™-2632 slab scissor lifts are excellent for indoor and outdoor construction, maintenance and installation applications on firm, level surfaces.

Overview
• Genie® AC E-Drive configuration offers increased runtime, reduced maintenance costs and industry-leading performance
• Easy to manoeuvre in tight spaces
• Large platform workspace with 0.91 m (36 in) roll-out platform extension
• Swing out components trays for easy access
• User-friendly Smart Link™ dual-zone controls for indoor and outdoor use

Max Working Height

9.80 m

Platform Capacity

277 kg

Machine Width

810 mm

Machine Length

2.44 m

Machine Weight

1,936 kg

Genie GS2646

The Genie® GS™-2646 E-Drive slab scissor lift is suitable for work indoors and outdoors on firm, level surfaces where space is limited. Its state-of-the-art Genie AC electric E-Drive system offers unmatched efficiency and runtime on installation, maintenance and construction jobs where a significant amount of driving is required.

Overview
• Powerful AC electric drive motors for unmatched driving performance and industry-leading runtime per battery charge
• Quiet, zero-emission electric operation
• Front-wheel drive and zero inside turning radius for easy positioning
• 25% gradeability with 14° breakover angle to easily get up slopes and loading ramps
• Large platform workspace with 0.91 m (36 in) roll-out platform extension
• Swing out components trays for easy access
• User-friendly Smart Link™ dual-zone controls for indoor and outdoor use

Max Working Height

9.80 m

Platform Capacity

454 kg

Machine Width

1.17 m

Machine Length

2.41 m

Machine Weight

2,447 kg

Genie GS3232

The Genie® GS™-3232 E-Drive slab scissor lift is an electric model ideal for operation in emission and sound-sensitive indoor and outdoor jobsites where space is limited. The standard, state-of-the-art Genie AC electric E-Drive system offers unmatched efficiency and runtime on installation, maintenance and construction jobs, especially when a significant amount of driving is required.

Overview
• Powerful AC electric drive motors for unmatched driving performance and industry-leading runtime per battery charge
• Quiet, zero-emission electric operation
• Easy to manoeuvre in tight spaces
• Automatic levelling hydraulic outriggers level machine on slopes up to 5˚
• 25% gradeability with 14° breakover angle to easily get up slopes and loading ramps
• Large platform workspace with 0.91 m (36 in) roll-out platform extension
• Swing out components trays for easy access
• User-friendly Smart Link™ dual-zone controls for indoor and outdoor use

Max Working Height

11.50 m

Platform Capacity

227 kg

Machine Width

810 mm

Machine Length

2.44 m

Machine Weight

2,352 kg

Genie GS3246

Compact dimensions and zero inside turning radius make the Genie® GS™-3246 E-Drive slab scissor lift ideal for indoor and outdoor construction, maintenance, and installation tasks on level ground and in tight spaces. Boasting the state-of-the-art Genie AC electric E-Drive system, it offers unmatched efficiency and runtime when a significant amount of driving is required.

Overview
• Powerful AC electric drive motors for unmatched driving performance and industry-leading runtime per battery charge
• Quiet, zero-emission electric operation
• Easy to manoeuvre in tight spaces and to drive through standard double doors
• 25% gradeability with 14° breakover angle to easily get up slopes and loading ramps
• Large platform workspace with 0.91 m (36 in) roll-out platform extension
• Swing out components trays for easy access
• User-friendly Smart Link™ dual-zone controls for indoor and outdoor use

Max Working Height

11.75 m

Platform Capacity

318 kg

Machine Width

1.17 m

Machine Length

2.41 m

Machine Weight

2,812 kg

Genie GS4046

Increase productivity in high-rise spaces with the Genie® GS™-4046 E-Drive slab scissor lift. With a compact footprint ideal for work in narrow aisles, it features the state-of-the-art Genie AC electric E-Drive system for unmatched performance and runtime in high indoor and outdoor jobsites that require a significant amount of driving on level ground.

Overview
• Powerful AC electric drive motors for unmatched driving performance and industry-leading runtime per battery charge
• Quiet, zero-emission electric operation
• Easy to manoeuvre in tight spaces and to drive through standard double doors
• 25% gradeability with 14° breakover angle to easily get up slopes and loading ramps
• 3 person max platform occupancy indoors and 1 person max platform occupancy outdoors
• Large platform workspace with 0.91 m (36 in) roll-out platform extension
• Swing out components trays for easy access
• User-friendly Smart Link™ dual-zone controls for indoor and outdoor use

Max Working Height

13.94 m

Platform Capacity

350 kg

Machine Width

1.18 m

Machine Length

2.48 m

Machine Weight

3,117 kg

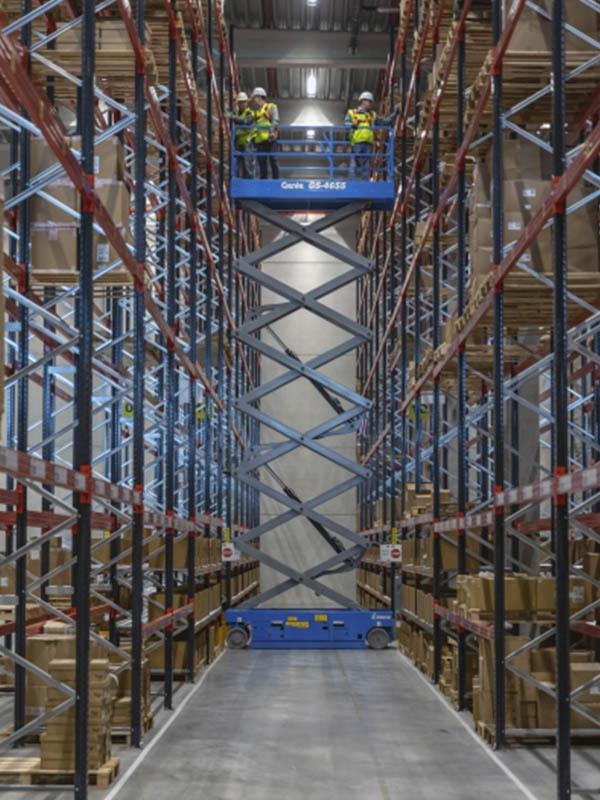

Genie GS4655

The Genie® GS™-4655 E-Drive slab scissor lift is a robust and eco-friendly machine engineered with the state-of-the-art Genie AC electric E-Drive system, for unmatched performance and runtime in high indoor and outdoor jobsites requiring a significant amount of driving. It offers operators an excellent combination of working height and lifting capacity capabilities with powerful electric AC drive motors to maximize jobsite productivity.

Overview
• Powerful AC electric drive motors for unmatched driving performance and industry-leading runtime per battery charge
• Quiet, zero-emission electric operation
• 25% gradeability with 14° breakover angle to easily get up slopes and loading ramps
• Full height drive up to 15.95 m (51 ft 9 in) max. working height indoors and 8.55 m (27 ft 6 in) outdoors
• 3 person max platform occupancy, indoors and outdoors
• Large platform workspace with 1.22 m (4 ft) slide-out extension deck
• Swing out components trays for easy access
• User-friendly Smart Link™ dual-zone controls for indoor and outdoor use

Max Working Height

15.95 m

Platform Capacity

350 kg

Machine Width

1.41 m

Machine Length

3.11 m

Machine Weight

3,701 kg
