LSC-DH Series
Specifications
Max Working Height
Max Platform Extension Length
Platform Capacity
Machine Gradeability
Drive Speed (Stowed / Raised)
Raising / Falling Time
Platform Dimensions
Drive Form
Battery
Machine Weight
7,800 mm
900 mm
230 Kg
30%
3.4 / 0.7 Km/h
25 / 20 (s)
1,640 x 720 mm
2WD, Front Wheel
6V*4/215Ah
1520 Kg
Specifications
Max Working Height
Max Platform Extension Length
Platform Capacity
Machine Gradeability
Drive Speed (Stowed / Raised)
Raising / Falling Time
Platform Dimensions
Drive Form
Battery
Machine Weight
10,000 mm
900 mm
230 Kg
25%
3.4 / 0.7 Km/h
38 / 42 (s)
2,280 x 810 mm
2WD, Front Wheel
6V*4/225Ah
2180 Kg
Specifications
Max Working Height
Max Platform Extension Length
Platform Capacity
Machine Gradeability
Drive Speed (Stowed / Raised)
Raising / Falling Time
Platform Dimensions
Drive Form
Battery
Machine Weight
10,000 mm
900 mm
450 Kg
25%
3.4 / 0.7 Km/h
38 / 42 (s)
2,280 x 1,150 mm
2WD, Front Wheel
6V*4/225Ah
2620 Kg
Specifications
Max Working Height
Max Platform Extension Length
Platform Capacity
Machine Gradeability
Drive Speed (Stowed / Raised)
Raising / Falling Time
Platform Dimensions
Drive Form
Battery
Machine Weight
12,000 mm
900 mm
350 Kg
25%
3.4 / 0.7 Km/h
55 / 52 (s)
2,280 x 1,150 mm
2WD, Front Wheel
6V*4/240Ah
2960 Kg
Specifications
Max Working Height
Max Platform Extension Length
Platform Capacity
Machine Gradeability
Drive Speed (Stowed / Raised)
Raising / Falling Time
Platform Dimensions
Drive Form
Battery
Machine Weight
14,000 mm
900 mm
350 Kg
25%
3.4 / 0.7 Km/h
60 / 55 (s)
2,280 x 1,150 mm
2WD, Front Wheel
6V*4/300Ah
3150 Kg
Specifications
Max Working Height (Indoor / Outdoor)
Max Platform Extension Length
Platform Capacity
Machine Gradeability
Drive Speed (Stowed / Raised)
Raising / Falling Time
Platform Dimensions
Drive Form
Battery
Machine Weight
16,000 (8,000) mm
1,350 mm
350 Kg
25%
3.4 / 0.7 Km/h
90 / 60 (s)
2,880 x 1,340 mm
2WD, Front Wheel
12V*4/300Ah
3700 Kg
Security & Intelligence
The LSC-DH series of electric scissor lifts is equipped with real-time equipment status monitoring and multiple security protections to ensure personnel safety. The electric series of scissor lifts is also equipped with an intelligent charging system to extend battery life.
Easy to Control

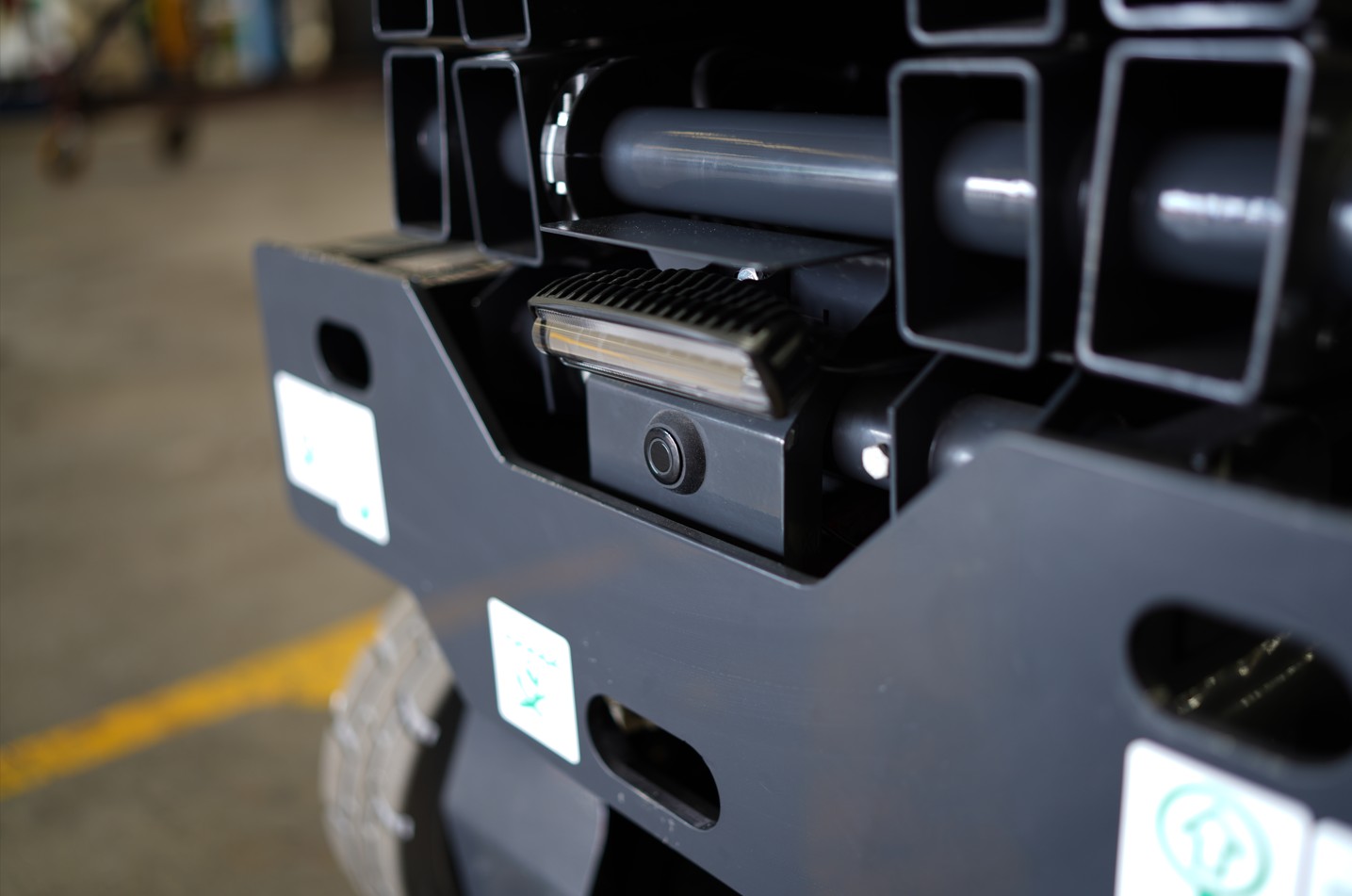

Drivable at full height to improve working efficiency while featuring fast and accurate platform elevation. Also features a forklift pocket, allowing for fast and easy unloading and storage.
- Standard longitudinal forklift sprocket hole
- Auto brake system
- Charging protection system
- Standard lateral forklift sprocket hole

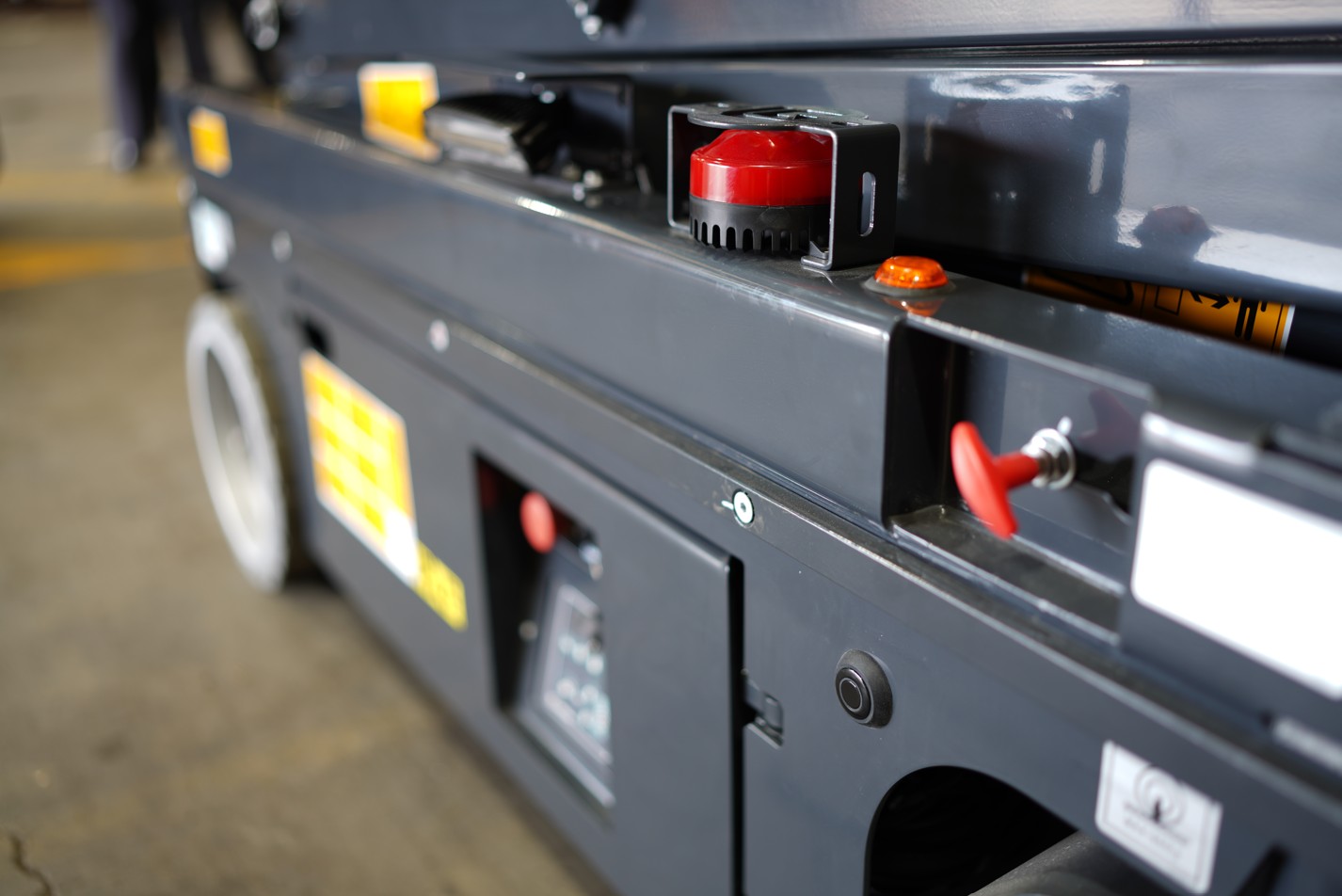

- Emergency stop button
- Adjustable extension platform

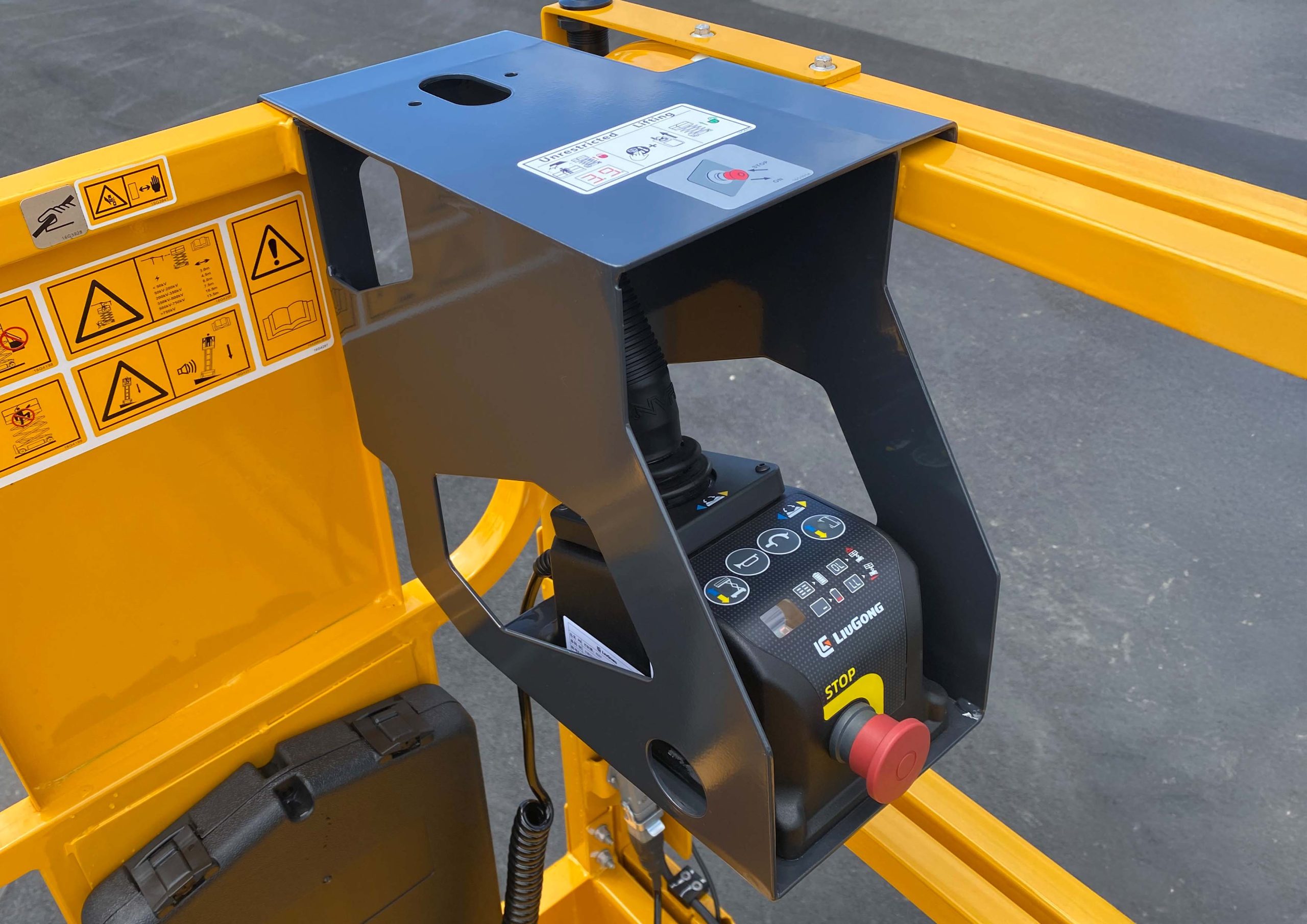

- Proportional control
- Active pothole protection
- Acousto-optic warning lights
- All motion alarm
- Drivable at full height
- Emergency lowering system
- Folding guardrails
- Drop anti-clip function
- Over tilt protective system

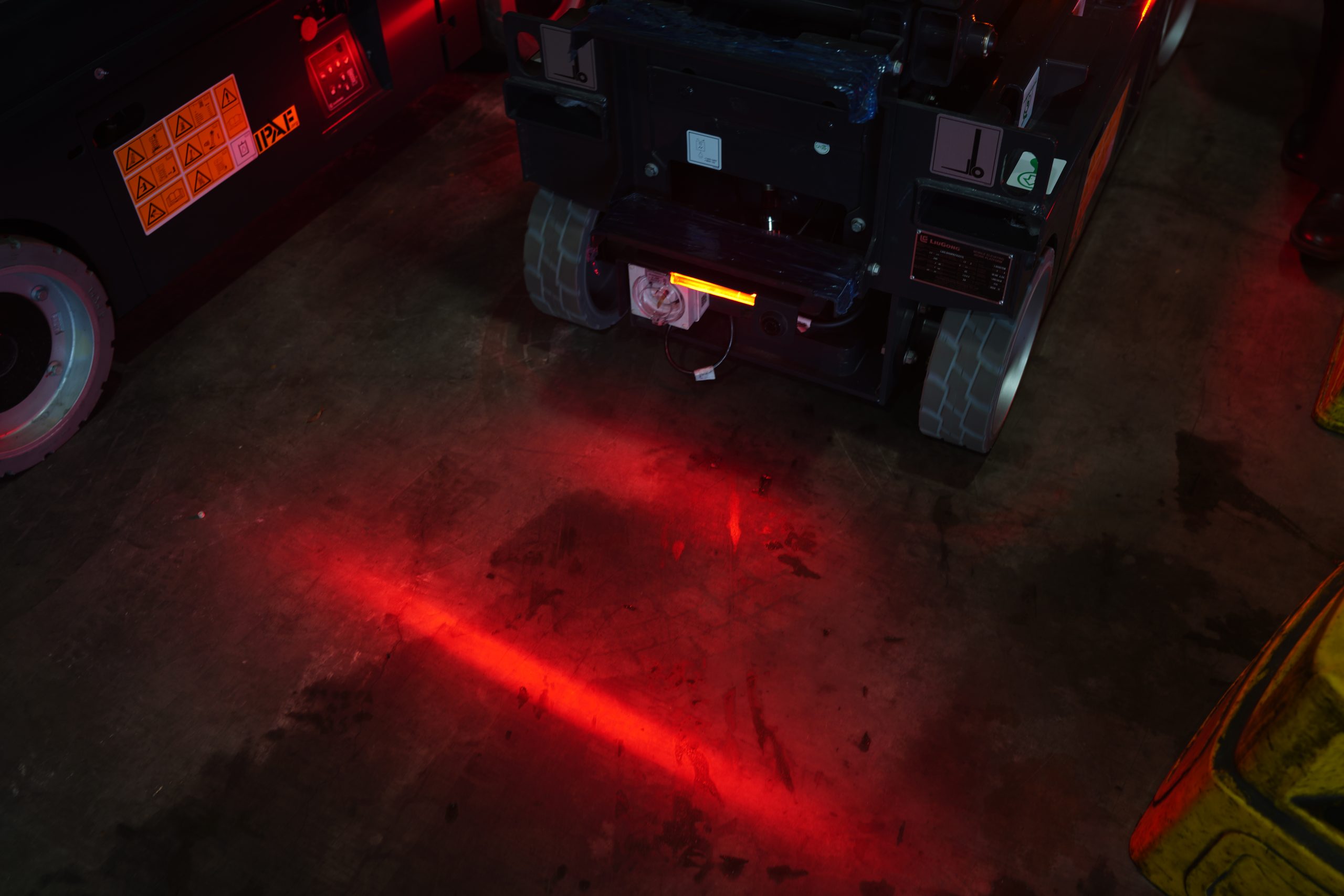

- Side anti-collision function

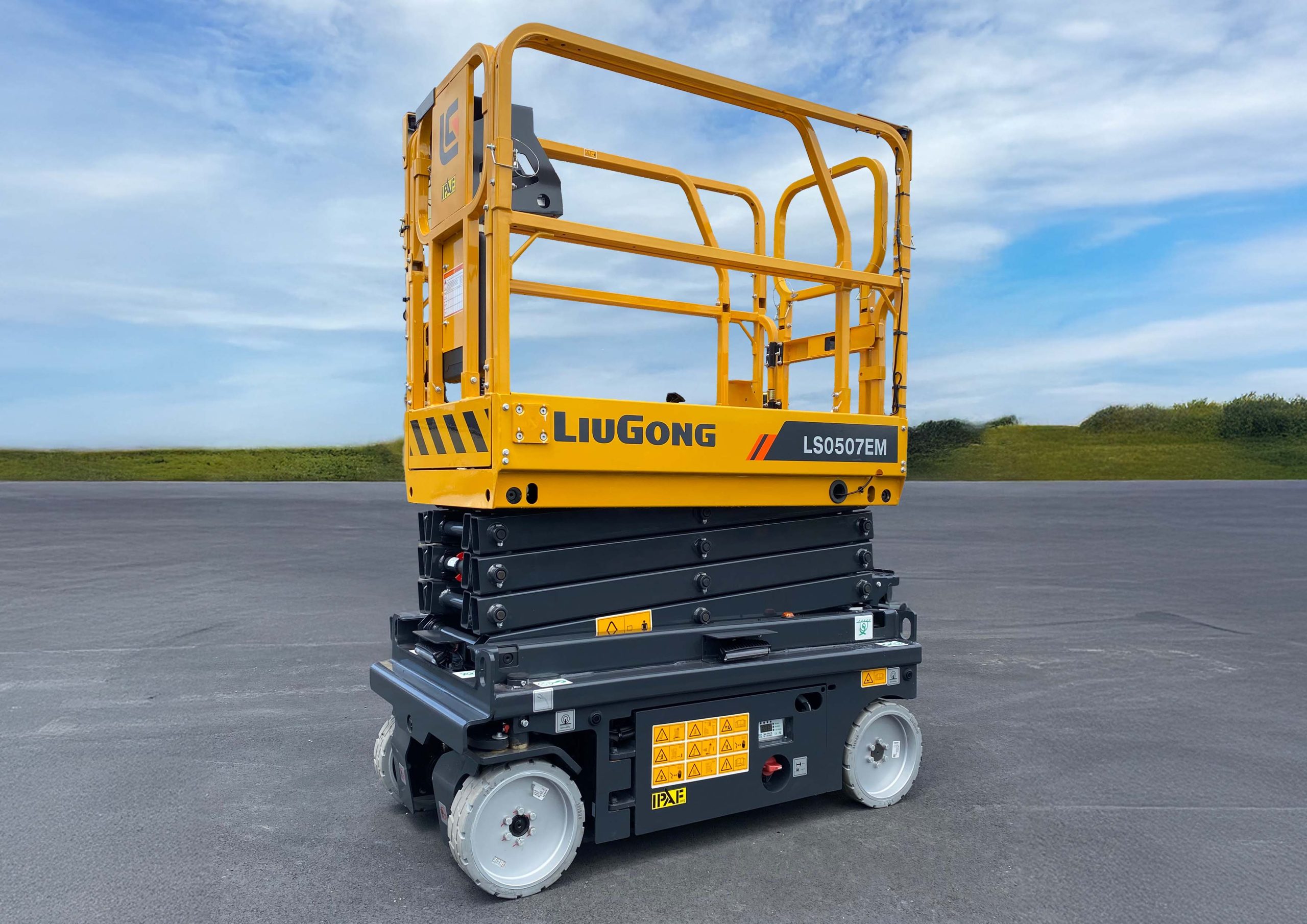

LSC-DEM Series
Specifications
Max Working Height
Max Platform Extension Length
Platform Capacity
Machine Gradeability
Drive Speed (Stowed / Raised)
Raising / Falling Time
Platform Dimensions
Drive Form
Battery
Machine Weight
3,600 mm
600 mm
240 Kg
25%
4 / 0.7 Km/h
23 / 21 (s)
1,300 x 700 mm
2WD, Front Wheel
12V*2/115Ah
880 Kg
Specifications
Max Working Height
Max Platform Extension Length
Platform Capacity
Machine Gradeability
Drive Speed (Stowed / Raised)
Raising / Falling Time
Platform Dimensions
Drive Form
Battery
Machine Weight
4,600 mm
600 mm
240 Kg
25%
4 / 0.7 Km/h
23 / 21 (s)
1,300 x 700 mm
2WD, Front Wheel
12V*2/95Ah
895 Kg
Specifications
Max Working Height
Max Platform Extension Length
Platform Capacity
Machine Gradeability
Drive Speed (Stowed / Raised)
Raising / Falling Time
Platform Dimensions
Drive Form
Battery
Machine Weight
5,600 mm
600 mm
230 Kg
25%
4 / 0.7 Km/h
30 / 25 (s)
1,300 x 700 mm
2WD, Front Wheel
12V*2/95Ah
1,320 Kg
Security & Intelligence
The LSC-DH series of electric scissor lifts is equipped with an intelligent control system, real-time equipment status monitoring and multiple security protections to ensure personnel safety. The electric series of scissor lifts is also equipped with an intelligent charging system to extend battery life.
Easy to Control
Drivable at full height to improve working efficiency while featuring fast and accurate platform elevation. Also features a forklift pocket, allowing for fast and easy unloading and storage.
- Standard longitudinal forklift sprocket hole
- Auto brake system
- Charging protection system
- Standard lateral forklift sprocket hole
- Emergency stop button
- Adjustable extension platform
- Proportional control
- Active pothole protection
- Acousto-optic warning lights
- All motion alarm
- Drivable at full height
- Emergency lowering system
- Folding guardrails
- Drop anti-clip function
- Over tilt protective system
- Side anti-collision function
LSC-DE Series
Specifications
Max Working Height
Max Platform Extension Length
Platform Capacity
Machine Gradeability
Drive Speed (Stowed / Raised)
Raising / Falling Time
Platform Dimensions
Drive Form
Battery
Machine Weight
5,800 mm
900 mm
230 Kg
30%
4 / 0.7 Km/h
25 / 20 (s)
1,640 x 750 mm
2WD, Front Wheel
6V*4/215Ah
1,540 Kg
Specifications
Max Working Height
Max Platform Extension Length
Platform Capacity
Machine Gradeability
Drive Speed (Stowed / Raised)
Raising / Falling Time
Platform Dimensions
Drive Form
Battery
Machine Weight
10,000 mm
900 mm
230 Kg
25%
4 / 0.7 Km/h
38 / 42 (s)
2,280 x 810 mm
2WD, Front Wheel
6V*4/225Ah
2,200 Kg
Specifications
Max Working Height
Max Platform Extension Length
Platform Capacity
Machine Gradeability
Drive Speed (Stowed / Raised)
Raising / Falling Time
Platform Dimensions
Drive Form
Battery
Machine Weight
10,000 mm
900 mm
450 Kg
25%
4 / 0.7 Km/h
38 / 42 (s)
2,280 x 1,150 mm
2WD, Front Wheel
6V*4/225Ah
2,640 Kg
Specifications
Max Working Height
Max Platform Extension Length
Platform Capacity
Machine Gradeability
Drive Speed (Stowed / Raised)
Raising / Falling Time
Platform Dimensions
Drive Form
Battery
Machine Weight
12,000 mm
900 mm
350 Kg
25%
4 / 0.7 Km/h
55 / 52 (s)
2,280 x 1,150 mm
2WD, Front Wheel
6V*4/240Ah
2,980 Kg
Specifications
Max Working Height
Max Platform Extension Length
Platform Capacity
Machine Gradeability
Drive Speed (Stowed / Raised)
Raising / Falling Time
Platform Dimensions
Drive Form
Battery
Machine Weight
16,000 mm
1350 mm
350 Kg
25%
4 / 0.7 Km/h
90 / 60 (s)
2,880 x 1,340 mm
Double Front Wheel Electric Drive
12V*4/300Ah
3,700 Kg
Security & Intelligence
The LSC-DH series of electric scissor lifts is equipped with an intelligent control system, real-time equipment status monitoring and multiple security protections to ensure personnel safety. The electric series of scissor lifts is also equipped with an intelligent charging system to extend battery life.
Easy to Control
Drivable at full height to improve working efficiency while featuring fast and accurate platform elevation. Also features a forklift pocket, allowing for fast and easy unloading and storage.
- Standard longitudinal forklift sprocket hole
- Auto brake system
- Charging protection system
- Standard lateral forklift sprocket hole
- Emergency stop button
- Adjustable extension platform
- Proportional control
- Active pothole protection
- Acousto-optic warning lights
- All motion alarm
- Drivable at full height
- Emergency lowering system
- Folding guardrails
- Drop anti-clip function
- Over tilt protective system
- Side anti-collision function
