LT16JE Li
Electric Telescopic Boom Lift
Specifications
Max Working Height
Max Platform Extension
Platform Capacity
Machine Gradeability
Drive Speed (Stowed)
Jib Articulation
Ground Clearence
Tyre Size (SNM)
Battery
Machine Weight
18,200 mm
11,300 mm
300 Kg
45%
5 Km/h
–70° / +72°
370 mm
33 x 12 – 20
51.2V/304Ah
7,500 Kg
Powerful. Precise.

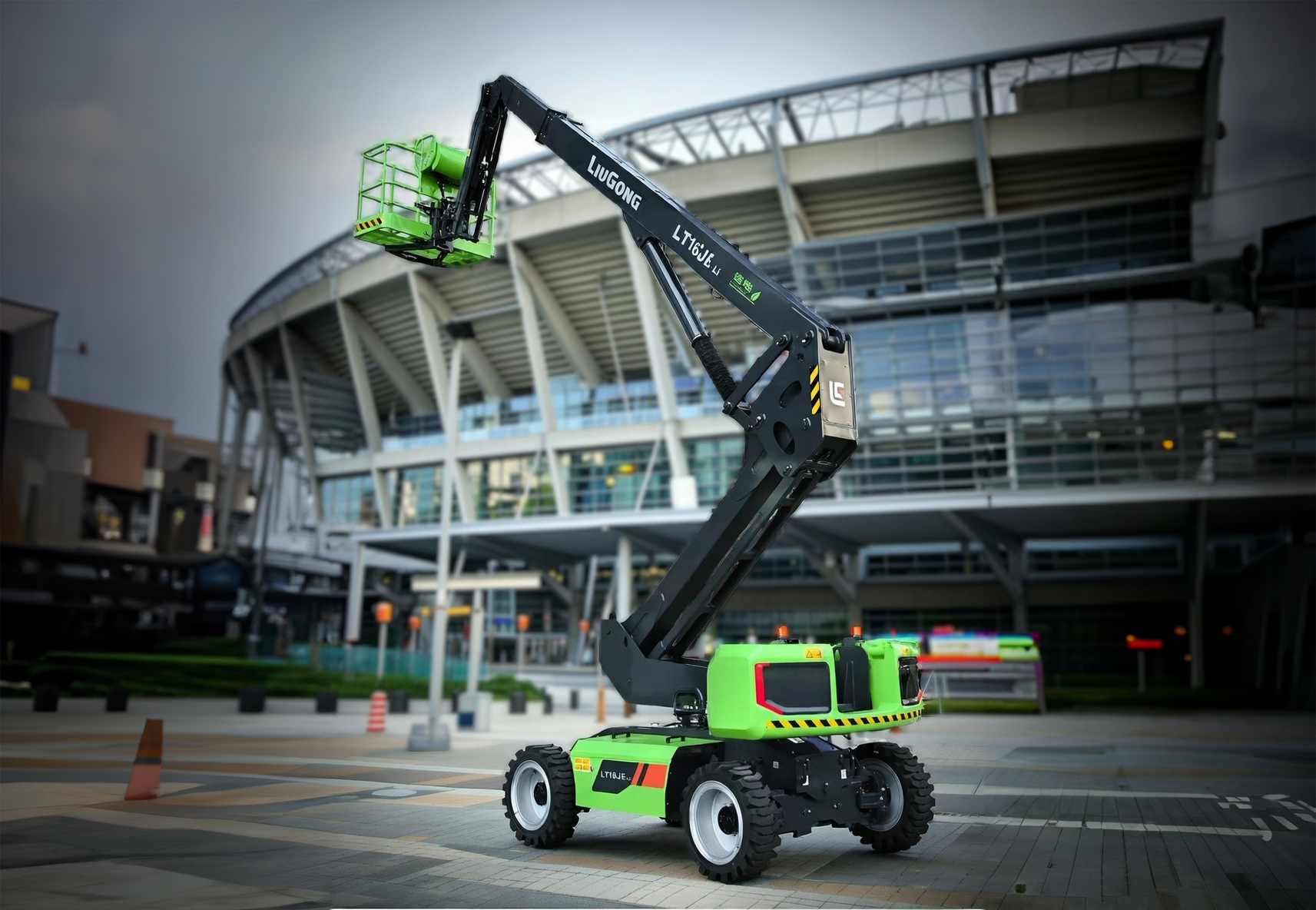

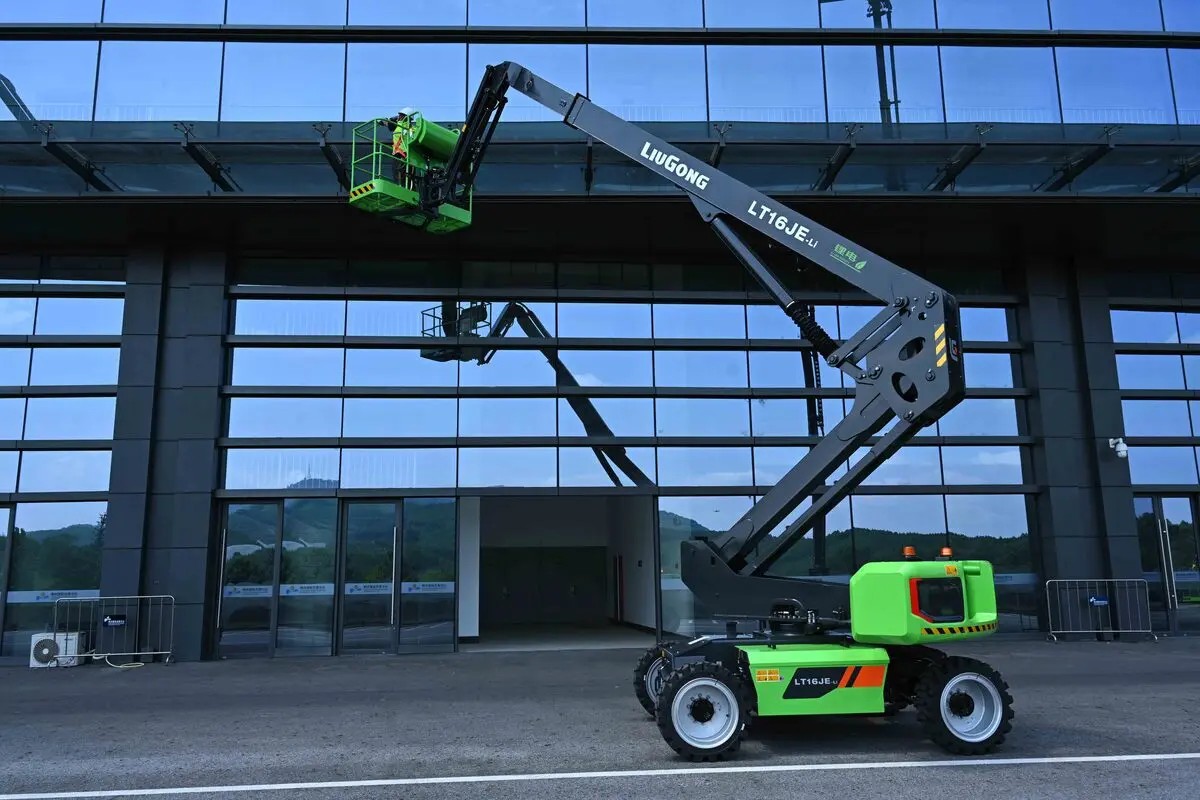

The LiuGong LT16JE is an electric telescopic boom lift designed for high-reach access tasks that demand efficiency, stability, and low emissions. It offers a maximum working height of 18.2 metres and a platform height of 16.2 metres, making it suitable for construction, maintenance, and industrial applications where vertical and horizontal reach are critical. The machine also provides a maximum horizontal reach of 11.3 metres, allowing operators to access difficult positions without frequent repositioning.
The platform supports a maximum lift capacity of 300 kg and accommodates up to two occupants. Its platform size of 1.83 × 0.76 metres ensures adequate workspace, while +90° platform rotation and a jib articulation range from –70° to +72° enhance precision and flexibility. A 360° continuous rotating turntable further improves manoeuvrability in confined or complex environments.
In terms of mobility, the LT16JE features four-wheel drive with two-wheel steering, solid off-road tyres, and a gradeability of 45%, enabling it to handle uneven terrain confidently. It travels at up to 5 km/h when stowed and 1 km/h when elevated, with a tight turning radius that improves site efficiency. Safety is supported by a tilt sensor system that activates at 5° both laterally and longitudinally.
Powered by a 51.2 V lithium battery (304 Ah), the LT16JE delivers quiet, emission-free operation. It uses a 10 kW AC lift motor and a 3.3 kW AC drive motor, supported by a 48 V charger and auxiliary 12 VDC system. With an overall weight of 7,500 kg, a compact transport footprint, and durable construction, the LT16JE is a robust, modern access solution designed for demanding work environments
PAGE UNDER CONSTRUCTION
LT20JE Li
Electric Telescopic Boom Lift
Specifications
Max Working Height
Max Platform Extension
Platform Capacity
Machine Gradeability
Drive Speed (Stowed)
Raising / Falling Time
Ground Clearence
Tyre Size (SNM)
Battery
Outrigger Leveling Angle
Machine Weight
18,000 mm
1,250 / 1,250 mm
680 Kg
40%
6 Km/h
80 / 70 (s)
360 mm
33 x 12 – 20 mm
8 x 6 V / 450Ah
X 12° / Y 7°
8,900 Kg
Highly Capable, Highly Felxible.

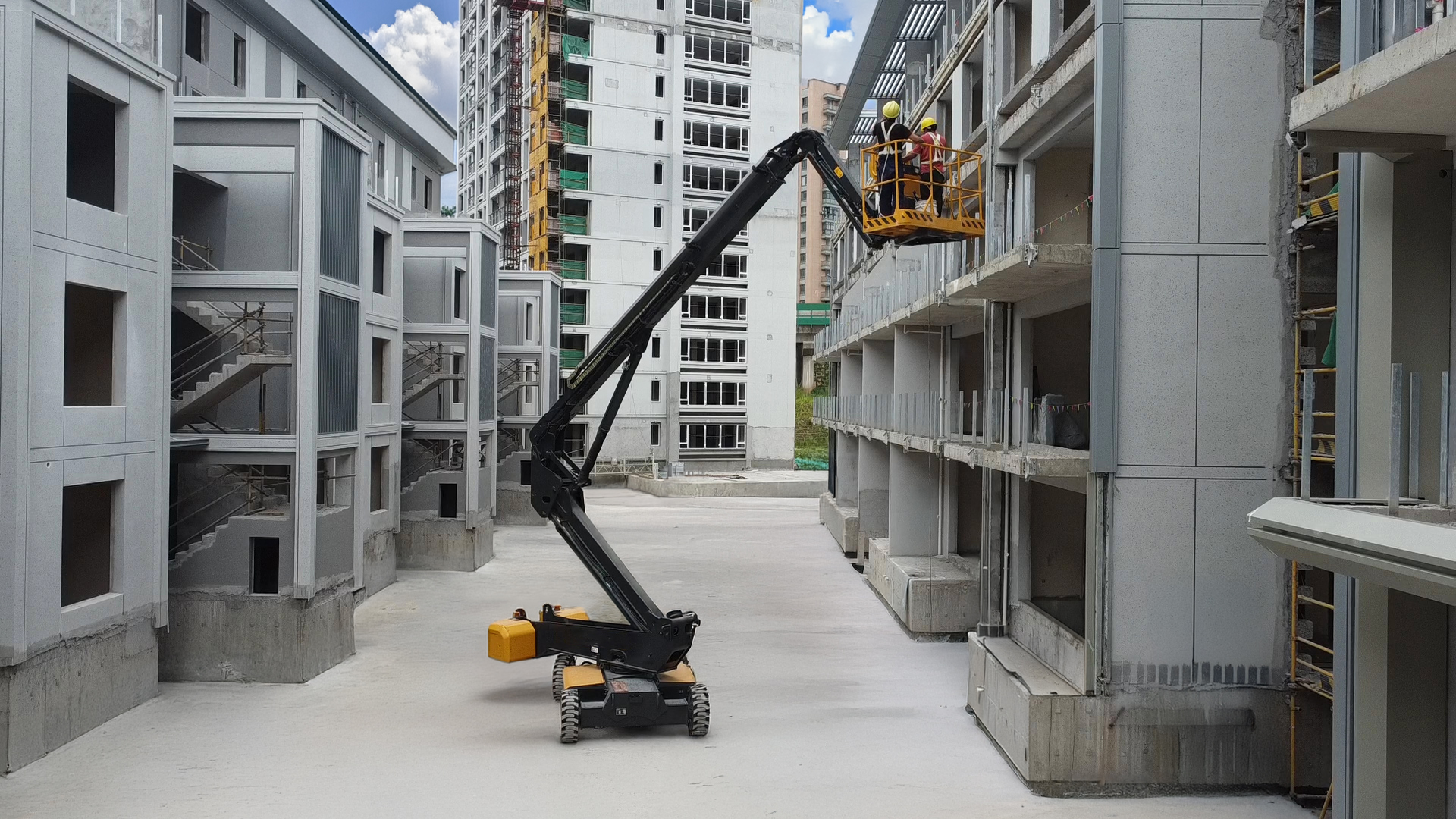

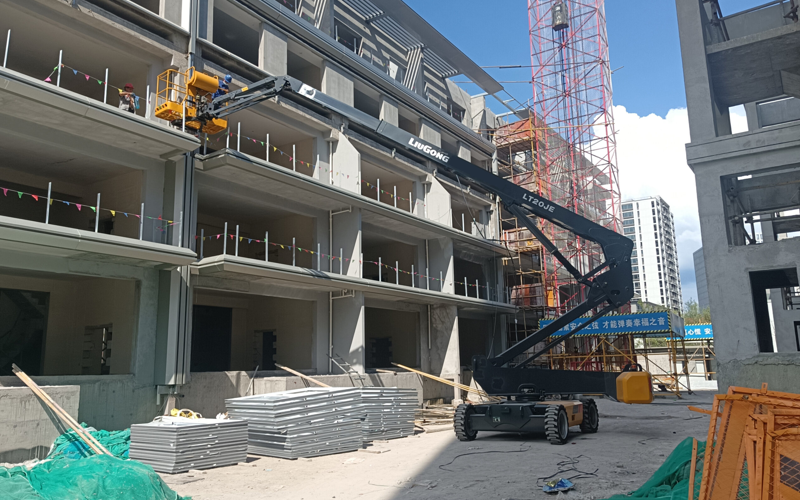

The LT20JE-Li is a high-performance electric telescopic boom lift designed for demanding access applications that require extended reach, strong load capacity, and zero-emissions operation. It delivers a maximum working height of 21.5 metres and a platform height of 19.5 metres, making it well suited for large-scale construction, industrial maintenance, and infrastructure projects. With a maximum lift capacity of 320 kg, the platform can safely accommodate two occupants plus tools, improving productivity at height.
The machine features an up-and-over telescopic boom that enhances outreach and obstacle clearance, supported by a maximum horizontal working range of approximately 14 metres. A 360° continuous rotating turret, ±90° platform rotation, and a jib articulation range of –65° to +70° provide precise positioning and flexibility in complex work zones. The platform itself measures 1.8 × 0.76 metres, offering a stable and practical working area.
Mobility and site performance are strong, with 4WD and 2-wheel steering, solid non-marking tyres, and a gradeability of 45%. The LT20JE-Li travels at up to 5 km/h when stowed and 1 km/h when elevated, while maintaining stability on working slopes up to 5°. A compact transport width of 2.29–2.42 metres allows easier site access and logistics.
Powered by a 48 V, 460 Ah LiFePO₄ lithium battery, the machine provides long run times, fast charging, and low maintenance. With an overall weight of approximately 9,500 kg, the LT20JE-Li combines reach, strength, and electric efficiency into a robust access solution built for tough environments.
LT26JE Li
Electric Telescopic Boom Lift
Specifications
Max Working Height
Max Platform Extension
Platform Capacity
Machine Gradeability
Drive Speed (Stowed)
Raising / Falling Time
Ground Clearence
Tyre Size (SNM)
Battery
Outrigger Leveling Angle
Machine Weight
18,000 mm
1,250 / 1,250 mm
680 Kg
40%
6 Km/h
80 / 70 (s)
360 mm
33 x 12 – 20 mm
8 x 6 V / 450Ah
X 12° / Y 7°
8,900 Kg
Reliability & Efficiency

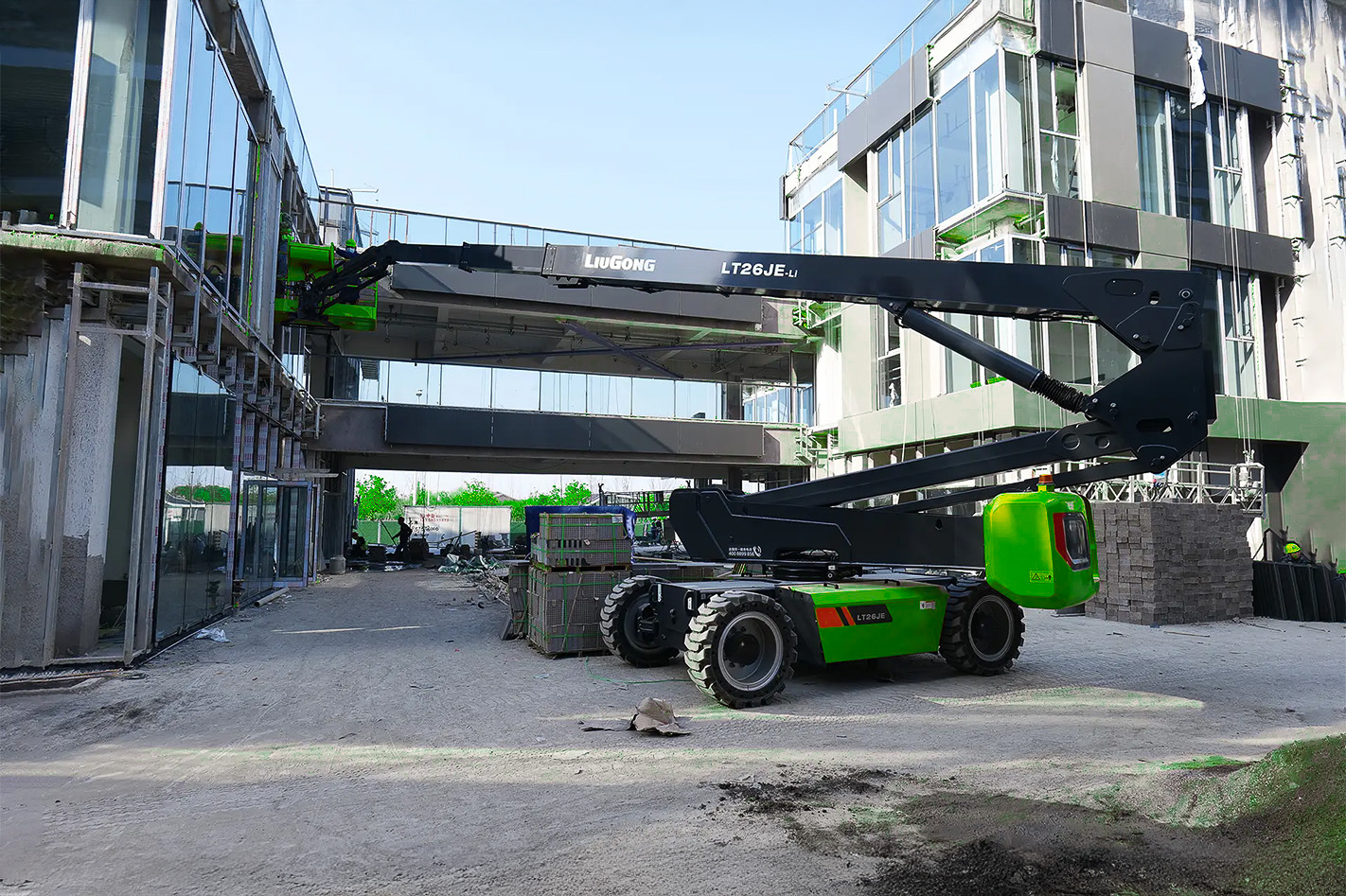

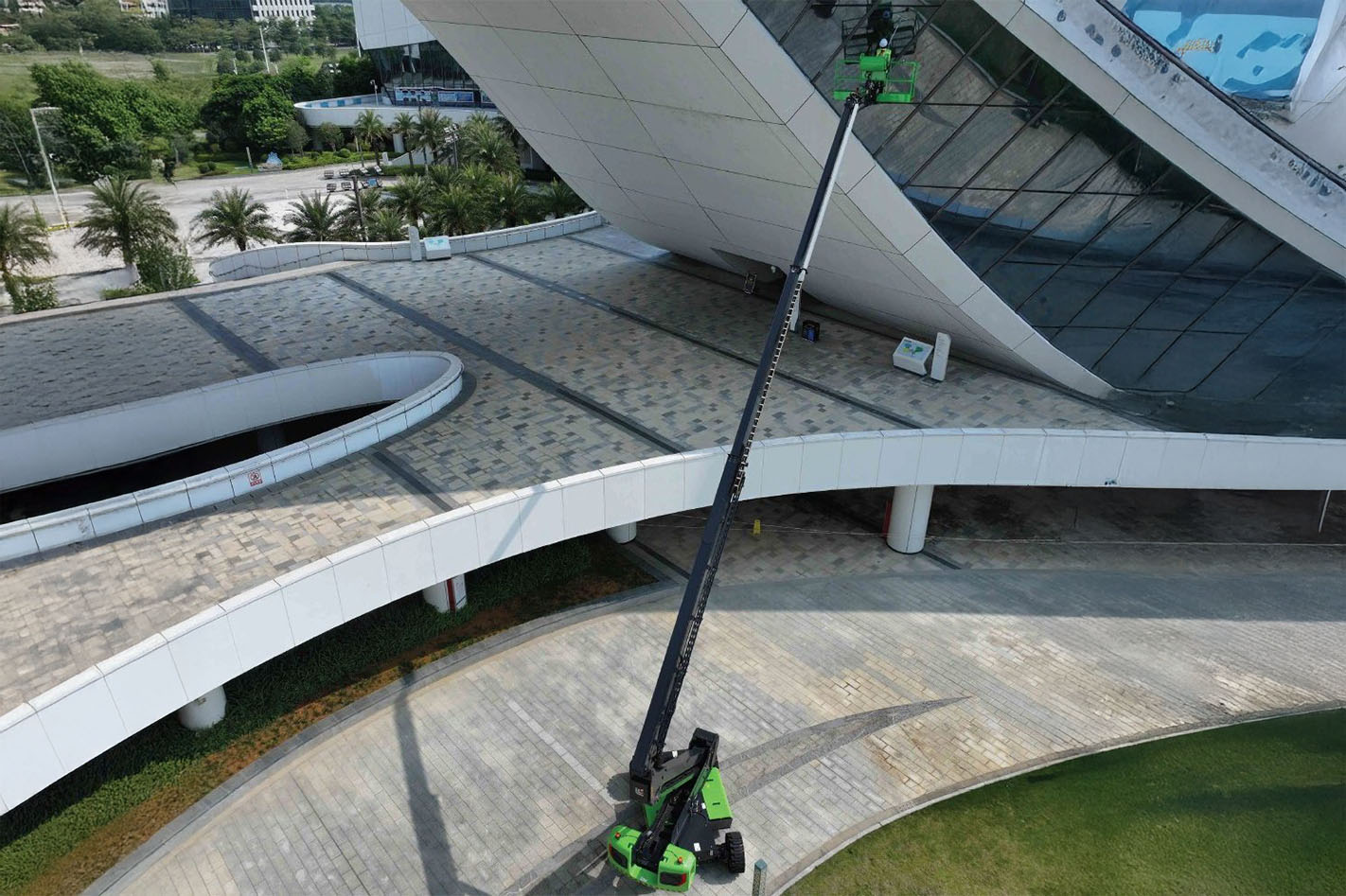

The LiuGong LT26JE electric telescopic boom lift is engineered for demanding indoor and outdoor applications, delivering a maximum working height of 28.1 metres (92’2″) and a platform height of 26.1 metres (85’8″), with an operating amplitude of 19.88 metres (65’3″) and horizontal reach of 19.28 metres (63’3″). Its spacious platform measures 2.44 × 0.91 × 1.1 metres (8′ × 2’11” × 3’7″) and supports an overall lift capacity of 300 / 454 kg (661 / 1,000 lb) for up to two occupants, featuring ±90° platform rotation, –65° to +70° vertical jib rotation, and 360° continuous turntable rotation.
In stowed configuration, the unit has a length of 11.03 metres (36’2″), width of 2.44 metres (8′), and height of 2.88 metres (9’5″), with 0.3 metres (11″) ground clearance and a 3.0-metre (9’10”) wheelbase. Weighing 15,000 kg (33,069 lb), it incorporates a zero-emission 83.2 V / 460 Ah lithium battery system, paired with an 80 V / 80 A charger, AC 30 kW lifting motor, AC 5.2 kW drive motor, 12 VDC auxiliary power unit, and a 140 L (36 gal) hydraulic tank.
Productivity is enhanced by a 5 km/h (3.1 mph) stowed drive speed and 1 km/h (0.6 mph) raised speed, 45% gradeability, 5° side-to-side and front-to-back tilt sensor activation, a turning radius of 3.5 / 6.8 metres (11’5″ / 22’4″) inside / outside, 4WD × 2WS drive steering, and 385/65-24 solid off-road tyres, making it ideal for construction, maintenance, and infrastructure tasks requiring reliable, eco-friendly elevated access.

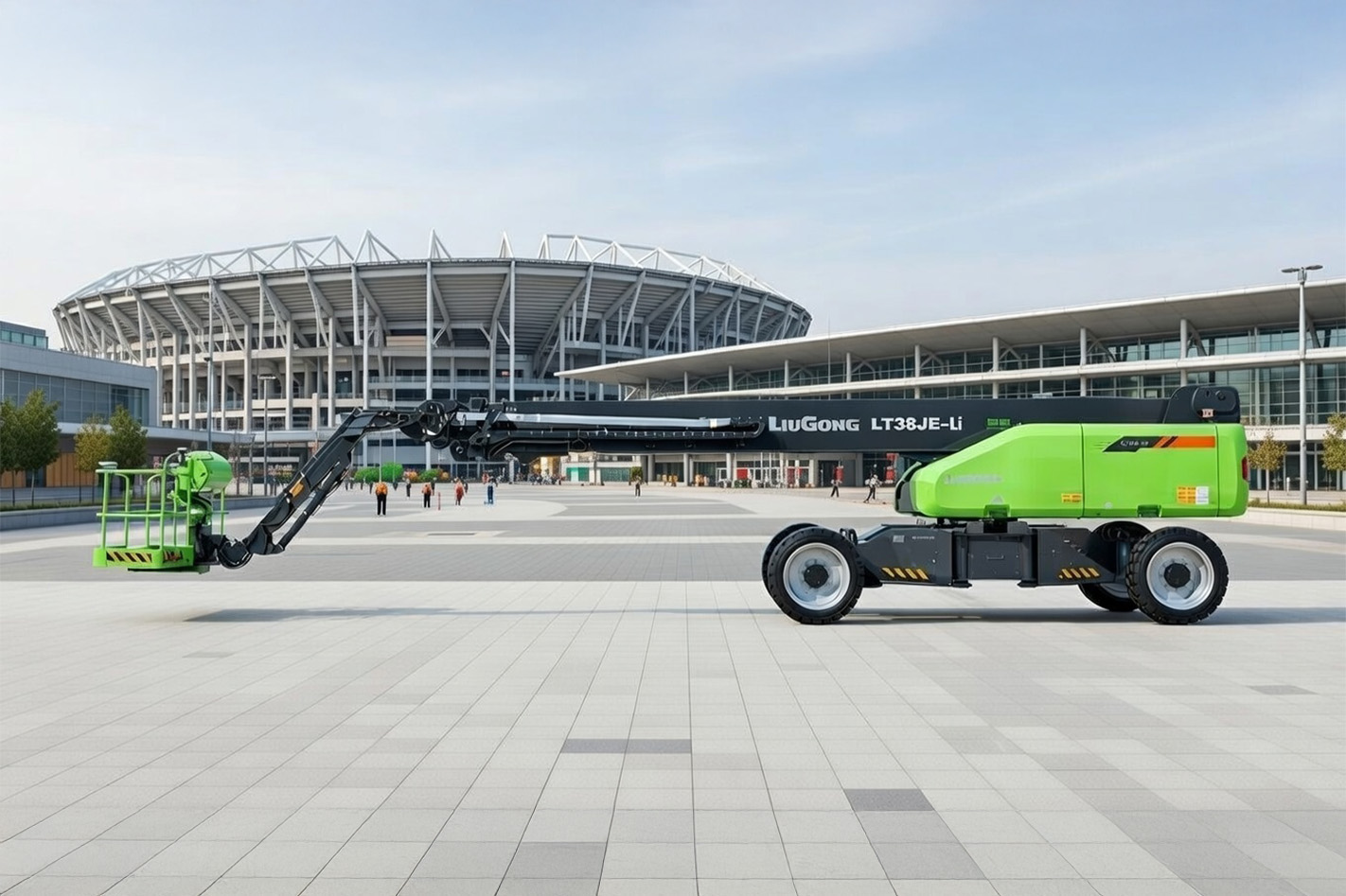

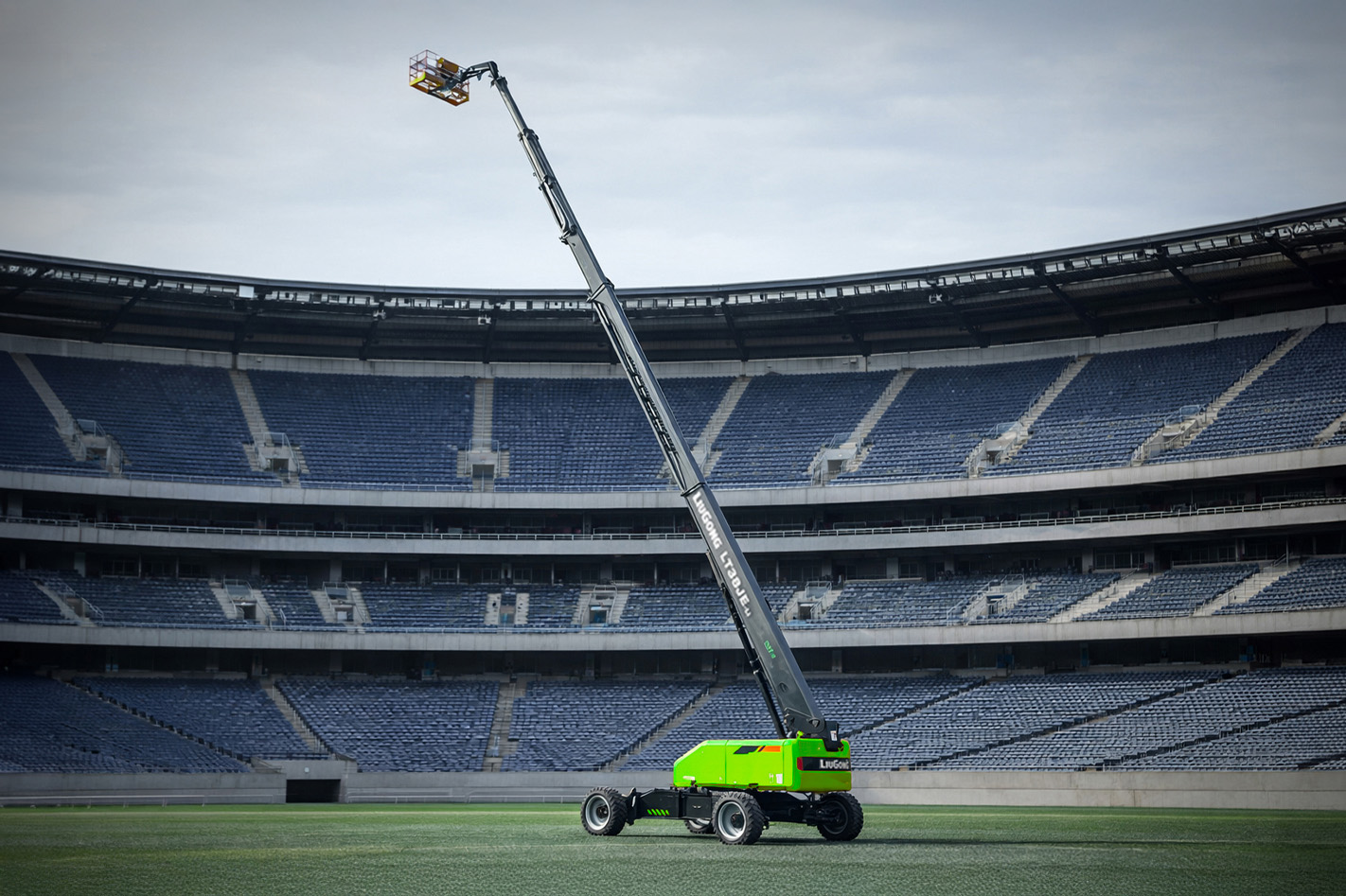

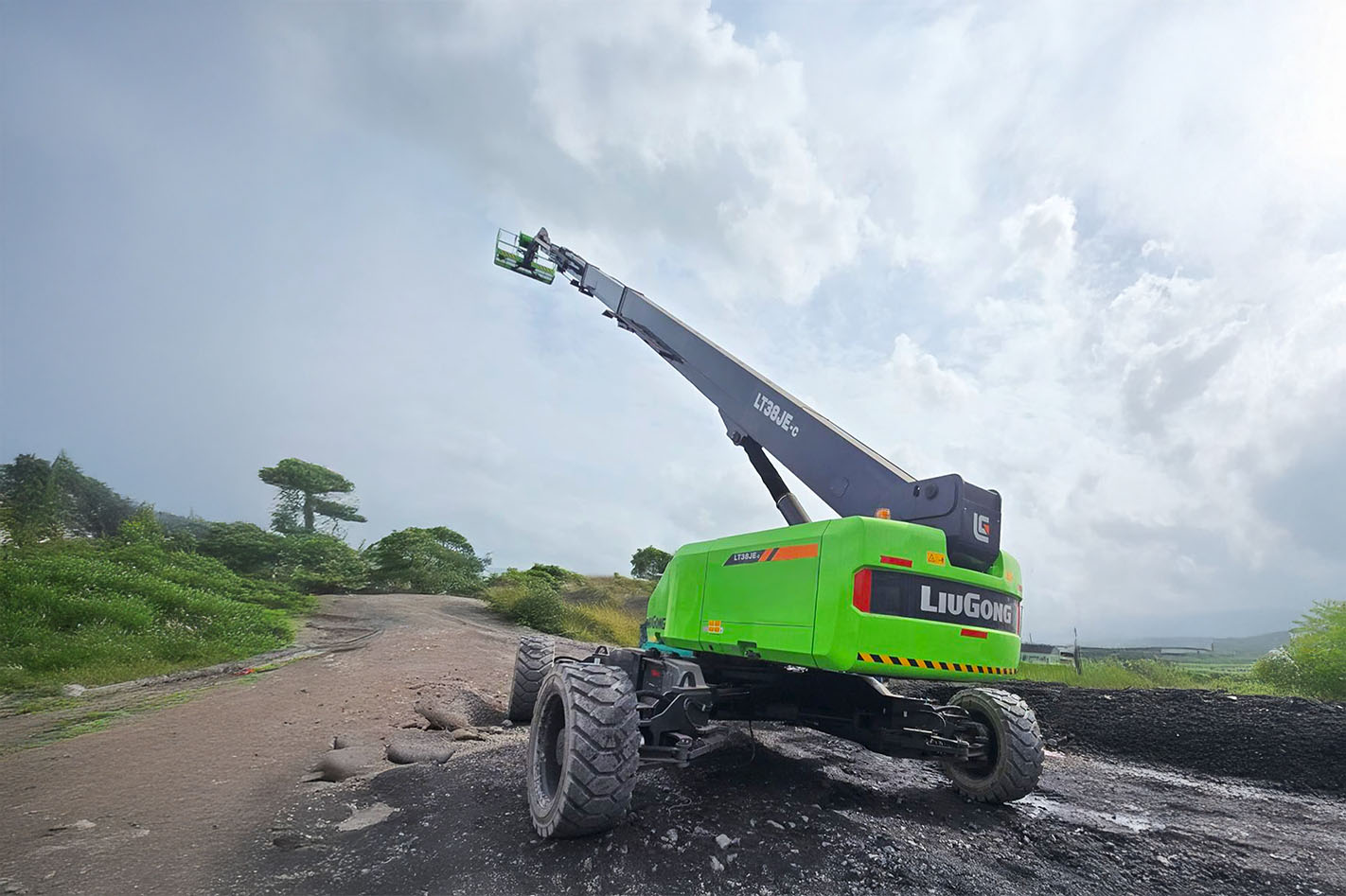

LT38JE Li
Electric Telescopic Boom Lift
Specifications
Max Working Height
Max Platform Extension
Platform Capacity
Machine Gradeability
Drive Speed (Stowed)
Raising / Falling Time
Ground Clearence
Tyre Size (SNM)
Battery
Outrigger Leveling Angle
Machine Weight
18,000 mm
1,250 / 1,250 mm
680 Kg
40%
6 Km/h
80 / 70 (s)
360 mm
33 x 12 – 20 mm
8 x 6 V / 450Ah
X 12° / Y 7°
8,900 Kg
Towering. Imposing.
Discover the eco-friendly powerhouse that is the LiuGong LT20JE-Li electric telescopic boom lift, designed to elevate your productivity to new heights—literally! Perfect for construction, maintenance, and infrastructure projects in Brisbane and beyond, this zero-emission marvel boasts a maximum working height of 21.5 m (70’6″) and platform height of 19.5 m (64′), with a maximum operating range of 14 m (45’11”) for tackling hard-to-reach spots with ease.
Its compact platform, sized at 1.8 × 0.76 × 1.1 m (5’11” × 2’6″ × 3’7″), supports an overall lift capacity of 320 kg (705.5 lb) for up to two occupants, complete with ±90° platform rotation and –65° to +70° vertical jib rotation for precise manoeuvring. Enjoy 360° continuous turret rotation and a turntable tailswing of 1.95 / 1.55 m (stowed / raised), all packed into stowed dimensions of 10.2 m length (33’6″), 2.42 m width (7’11”), and 2.75 m height (9′), with 0.31 m (1′) ground clearance and a 2.5 m (8’2″) wheelbase.
Productivity is enhanced by a 5 km/h (3.1 mph) stowed drive speed and 1 km/h (0.6 mph) raised speed, 45% gradeability, 5° side-to-side and front-to-back tilt sensor activation, a turning radius of 3.5 / 6.8 metres (11’5″ / 22’4″) inside / outside, 4WD × 2WS drive steering, and 385/65-24 solid off-road tyres, making it ideal for construction, maintenance, and infrastructure tasks requiring reliable, eco-friendly elevated access.
