Articulated Boom Lifts

Nifty Lift 01

Niftylift self-propelled elevating work platforms have working heights ranging from 10m (33ft) to over 28m (92ft). All are compact and manoeuvrable and can be driven from the platform in any boom position. This saves time and improves efficiency. With ‘Narrow’ and 4WD chassis options available* Niftylift self-propelled elevating work platforms are ideal for industrial or construction environments. Easy to use proportional controls make Nifty self-propelled cherry pickers simple to operate. Features such as telescopic booms, fly-booms and platform rotation maximize their effectiveness on any task.

Power options available on Nifty self propelled cherry pickers include electric, battery, mains, petrol, diesel. We also have ‘Bi-Energy’ (e.g. battery & diesel) which combines the benefits of two power sources on the same machine and Hybrid, our most efficient, economical and environmentally conscious power source.

HR12NE

The HeightRider 12 Narrow Electric (HR12NE) is a zero-emission self-propelled work platform from Niftylift. It can be driven from the cage while elevated or lowered and it delivers an impressive working envelope from a narrow-aisle, maneuverable chassis.

The HR12NE’s compact dimensions make it ideal for working in a wide range of environments. It’s particularly well suited to industrial locations such as factories and warehouses, where narrow-aisle operation is required.

Maximum Working Height

12.10 m

Maximum Working Outreach

6.40 m

Machine Dimensions

L 3.97 m, H 1.98 m, W 1.49 m

Cage Width and Depth

1.20 m, 0.85 m

Safe Working Load

200 kg

Travel Speed

6 km/h

Maximum Slope

25% / 14°

Turning Radius

3.30 m

Machine Weight

3250 kg

Power Options

Battery Only

AGM – Maintenance Free

*Lithium Option

With its compact dimensions and class-leading working envelope, the Height Rider 12 has always been versatile and reliable. Add to this a low weight chassis and a powerful 4-Wheel-Drive system and you’ve got the Height Rider 12 4×4 (HR12 4×4) – one of the most complete 12m (40ft) self propelled boom lifts available.

Its telescopic upper boom provides increased accuracy when positioning the platform and 6.10m outreach make the HR12 4×4 self propelled boom lift perfect for reaching up and over all kinds of obstacles.

Maximum Working Height

12.20 m

Maximum Working Outreach

6.10 m

Machine Dimensions

L 4.10 m, H 1.95 m, W 1.60 m

Cage Width and Depth

1.10 m, 0.65 m

Safe Working Load

200 kg

Travel Speed

3.7 km/h

Maximum Slope

30% / 17°

Turning Radius

4.30 m

Machine Weight

3470 kg

Power Options

Diesel Only

Bi – Energy (Engine & Battery)

HR12L

The HeightRider 12 Narrow Electric (HR12NE) is a zero-emission self-propelled work platform from Niftylift. It can be driven from the cage while elevated or lowered and it delivers an impressive working envelope from a narrow-aisle, maneuverable chassis.

The HR12NE’s compact dimensions make it ideal for working in a wide range of environments. It’s particularly well suited to industrial locations such as factories and warehouses, where narrow-aisle operation is required.

Maximum Working Height

12.10 m

Maximum Working Outreach

6.40 m

Machine Dimensions

L 3.97 m, H 1.98 m, W 1.79 m

Cage Width and Depth

1.20 m, 0.85 m

Safe Working Load

200 kg

Travel Speed

6 km/h

Maximum Slope

25% / 14°

Turning Radius

3.63 m

Machine Weight

2540 kg

Power Options

Battery Only

AGM – Maintenance Free

*Lithium Option

HR15 4×4

Winner of the Hire Association Europe’s ‘HAE Product of the year’ 2013, the Height Rider 15 4-wheel-drive (HR15 4×4) offers one of the most impressive working envelopes in its class.

Its compact base allows it to manoeuvre easily in enclosed spaces and its extremely low overall weight helps to minimise transportation costs.

Maximum Working Height

15.70 m

Maximum Working Outreach

9.40 m

Machine Dimensions

L 6.35 m, H 2.10 m, W 2.00 m

Cage Width and Depth

1.80 m, 0.85 m

Cage Rotation

180°

Safe Working Load

225 kg

Travel Speed

6 km/h

Maximum Slope

45% / 24°

Turning Radius

3.70 m

Machine Weight

4500(D) / 4800(H) kg

Power Options

Diesel only (Kubota 1105 – 25Hp/18.5kW)

Hybrid (Battery & Diesel Kubota 722 – 18Hp/14kW)

Winner of the Hire Association Europe’s HAE Product of the Year 2013, the  Height Rider 15 Hybrid 4-wheel-drive (HR15 Hybrid 4×4self propelled cherry picker is one of a new generation of environmentally conscious work platforms from Niftylift.

Combining advanced power-source technology with efficient 4×4, it delivers outstanding performance from a compact and super-low-weight design. It offers one of the most impressive working envelopes in its class and its compact base allows it to manoeuvre easily in enclosed spaces and its extremely low overall weight helps to minimise transportation costs.

Maximum Working Height

15.70 m

Maximum Working Outreach

9.40 m

Machine Dimensions

L 6.35 m, H 2.10 m, W 2.00 m

Cage Width and Depth

1.80 m, 0.85 m

Safe Working Load

225 kg

Travel Speed

6 km/h

Maximum Slope

45% / 24°

Turning Radius

3.70 m

Machine Weight

4500(D) / 4800(H) kg

Power Options

Diesel only (Kubota 1105 – 25Hp/18.5kW)

Hybrid (Battery & Diesel Kubota 722 – 18Hp/14kW)

HR15N

The new HeightRider 15N (HR15N) will lift 2 men and their tools to a working height of 15.5m or a working outreach of 9.7m.

The HR15N’s compact dimensions and zero-tail-swing enable it to travel through and work in restricted spaces, while its non-marking tyres mean it can work both inside and out, making it ideal for maintenance or industrial work.

Maximum Working Height

15.50 m

Maximum Working Outreach

9.70 m

Machine Dimensions

L 6.40 m, H 1.99 m, W 1.50 m

Cage Width and Depth

1.50 m, 0.80 m

Cage Rotation

180°

Safe Working Load

225 kg

Travel Speed

3.5 km/h

Maximum Slope

25% / 14°

Turning Radius

3.50 m

Machine Weight

7250 kg

Power Options

Battery Only

Hybrid (Battery & Diesel)

HR15E

The HeightRider 15 All-Electric (HR15E) is a zero-emission self-propelled cherry picker and will lift 2 persons and their tools to a working height of 15.7m or a working outreach of 9.4m.

The HR15E’s 1.8m wide ToughCage offers more space for materials and tools and a 150° fly-boom with 180° cage rotation increases accuracy when positioning the cage. The tough, impact-resistant composite base and larger cross-section steel rails of the ToughCage give strength and durability, while the multi-award-winning SiOPS® provides built-in operator protection.

Maximum Working Height

15.70 m

Maximum Working Outreach

9.40 m

Machine Dimensions

L 6.35 m, H 2.10 m, W 2.00 m

Cage Width and Depth

1.80 m, 0.85 m

Cage Rotation

180°

Safe Working Load

225 kg

Travel Speed

6 km/h

Maximum Slope

35% / 19°

Turning Radius

3.70 m

Machine Weight

4680 kg

Power Options

All Electric

HR17 4×4

The Height Rider 17 4-wheel-drive (HR17 4×4) offers one of the most impressive working envelopes in its class. Its compact base allows it to manoeuvre easily in enclosed spaces and its extremely low overall weight helps to minimise transportation costs.

The Diesel-only option incorporates a versatile and efficient TIER IV compliant engine to deliver maximum traction and gradeability, making it ideal for rough or uneven ground. Both power options include Niftylift’s advanced exhaust purification system, which greatly reduces Carbon Monoxide, Hydrocarbon and particulate emissions making either an environmentally conscious choice.

Maximum Working Height

17.20 m

Maximum Working Outreach

9.40 m

Machine Dimensions

L 6.35 m, H 2.10 m, W 2.00 m

Cage Width and Depth

1.80 m, 0.85 m

Cage Rotation

180°

Safe Working Load

225 kg

Travel Speed

6 km/h

Maximum Slope

45% / 24°

Turning Radius

3.70 m

Machine Weight

5000 kg

Power Options

Diesel Only (Kubota 1105 – 25Hp/18.5kW)

Hybrid (Battery and Diesel Kubota 772 – 18Hp/14kW)

The Height Rider 17 4-wheel-drive (HR17 4×4) offers one of the most impressive working envelopes in its class. Its compact base allows it to manoeuvre easily in enclosed spaces and its extremely low overall weight helps to minimise transportation costs.

Both power options include Niftylift’s advanced exhaust purification system, which greatly reduces Carbon Monoxide, Hydrocarbon and particulate emissions making either an environmentally conscious choice.

Maximum Working Height

17.20 m

Maximum Working Outreach

9.40 m

Machine Dimensions

L 6.35 m, H 2.10 m, W 2.00 m

Cage Width and Depth

1.80 m, 0.85 m

Cage Rotation

180°

Safe Working Load

225 kg

Travel Speed

6 km/h

Maximum Slope

45% / 24°

Turning Radius

3.70 m

Machine Weight

5000 kg

Power Options

Diesel Only (Kubota 1105 – 25Hp/18.5kW)

Hybrid (Battery and Diesel Kubota 772 – 18Hp/14kW)

HR17N

The HeightRider 17 Narrow (HR17N) will lift 2 men and their tools to a working height of 17m or a working outreach of 9.7m.

The HR17N’s compact dimensions and zero-tail-swing enable it to travel through and work in restricted spaces, while its non-marking tyres mean it can work both inside and out, making it ideal for maintenance or industrial work.

The HR17N is available with two power options. You can choose from super-efficient battery power, or Niftylift’s revolutionary Hybrid power system.

Maximum Working Height

17.00 m

Maximum Working Outreach

9.70 m

Machine Dimensions

L 6.40 m, H 1.99 m, W 1.50 m

Cage Width and Depth

1.50 m, 0.80 m

Cage Rotation

180°

Safe Working Load

225 kg

Travel Speed

3.5 km/h

Maximum Slope

25% / 14°

Turning Radius

3.50 m

Machine Weight

7780(E) / 7650(H) kg

Power Options

Battery Only

Hybrid (Battery and Diesel)

HR17 Electric

The HeightRider 17 All-Electric (HR17E) is a zero-emission self-propelled cherry picker and will lift 2 persons and their tools to a working height of 17.2m or a working outreach of 9.4m.

The HR17E utilises a super-efficient battery power system with an all-electric drive that allows the batteries to work for four times as long, so more work can be completed on a charge and running costs reduced.

Maximum Working Height

17.20 m

Maximum Working Outreach

9.40 m

Machine Dimensions

L 6.35 m, H 2.10 m, W 2.00 m

Cage Width and Depth

1.80 m, 0.85 m

Cage Rotation

180°

Safe Working Load

225 kg

Travel Speed

6 km/h

Maximum Slope

35% / 19°

Turning Radius

3.70 m

Machine Weight

4970 kg

Power Options

All-Electric

HR21 4×4

The Height Rider 21 4×4 (HR21 4×4) self-propelled cherry picker will lift 2 persons and their tools to a working height of 20.8m or a working outreach of 13m. Proportional controls deliver smooth, measured operation while 160º cage rotation and a 150º fly-boom allow precise positioning anywhere in its vast working envelope.

The Diesel-only option incorporates a versatile and efficient TIER IV compliant engine to deliver maximum traction and gradeability, making it ideal for rough or uneven ground.

Maximum Working Height

20.80 m

Maximum Working Outreach

13.00 m

Machine Dimensions

L 6.62 m, H 2.18 m, W 2.27 m

Cage Width and Depth

1.80 m, 0.80 m

Cage Rotation

160°

Safe Working Load

250 kg

Travel Speed

6 km/h

Maximum Slope

45% / 24°

Turning Radius

3.89 m

Machine Weight

6680 kg

Power Options

Diesel Only (Kubota 1505 – 32Hp)

Hybrid (Battery & Kubota D902)

HR21 Hybrid 4×4 is the winner of the International Powered Access Federation’s IAPA Product of the Year 2018 award.

The Hybrid option incorporates a smaller, power-optimised TIER IV compliant engine supported by the machine’s battery pack for when extra power is needed. This maintains power and performance while reducing fuel consumption for maximum efficiency. The Innovative ‘Diesel Re-Gen’ feature also recharges the batteries without a mains power source, giving a ‘fast-charge’ whenever the machine is idle and the engine running. In addition, an electric-only mode allows zero-emission operation, making it ideal for indoor use, or for quiet, clean operation.

Maximum Working Height

20.80 m

Maximum Working Outreach

13.00 m

Machine Dimensions

L 6.62 m, H 2.18 m, W 2.27 m

Cage Width and Depth

1.80 m, 0.80 m

Cage Rotation

160°

Safe Working Load

250 kg

Travel Speed

6 km/h

Maximum Slope

45% / 24°

Turning Radius

3.89 m

Machine Weight

6680 kg

Power Options

Diesel Only (Kubota 1505 – 32Hp)

Hybrid (Battery & Kubota D902)

HR21 Electric 2×4

The HeightRider 21 All-Electric (HR21E) is a self-propelled cherry picker and will lift 2 persons and their tools to a working height of 20.8m or a working outreach of 13m.

Proportional controls deliver smooth, measured operation while 160º cage rotation and 150º fly-boom allow precise positioning anywhere in its vast working envelope.

Maximum Working Height

20.80 m

Maximum Working Outreach

13.00 m

Machine Dimensions

L 6.62 m, H 2.18 m, W 2.27 m

Cage Width and Depth

1.80 m, 0.80 m

Cage Rotation

160°

Safe Working Load

250 kg

Travel Speed

6 km/h

Maximum Slope

25% / 14°

Turning Radius

3.89 m

Machine Weight

6640 kg

Power Options

Battery Only

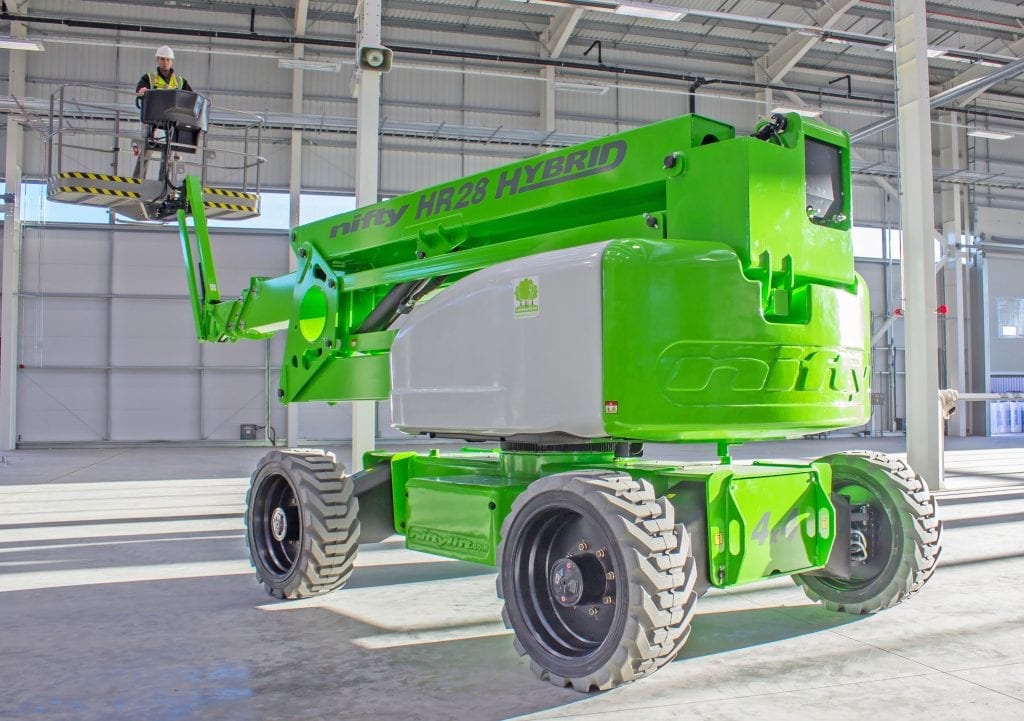

HR28 Hybrid 4×4

The Height Rider 28 Hybrid Four-Wheel-Drive (HR28 Hybrid 4×4) is one of a new generation of environmentally conscious work platforms from Niftylift. Combining advanced power-source technology with efficient 4×4, it delivers outstanding performance from a compact and low-weight design.

On Diesel, the HR28’s revolutionary Hybrid system can automatically utilise its electric motor to boost power whenever needed. This allows the HR28 Hybrid 4×4 to operate with a smaller engine, reducing fuel consumption and its exhaust purification system then further reduces CO/NOx, particulates, and noise emissions.

The HR28 Hybrid 4×4 can also operate on battery alone, making it ideal for indoor, quiet or clean applications. Diesel Re-Gen recharges the batteries without a mains power source and a fast charge is achieved whenever the machine is idle and the engine is left running.

Maximum Working Height

28.00 m

Maximum Working Outreach

19.00 m

Machine Dimensions

L 9.28 m, H 2.70 m, W 2.49 m

Cage Width and Depth

2.40 m, 0.90 m

Cage Rotation

180°

Safe Working Load

280 kg

Travel Speed

4.7 km/h

Maximum Slope

40% / 22°

Turning Radius

5.9 m

Machine Weight

14650 kg

Power Options

Hybrid (Battery & Kubota D1105)
