Track Drive Boom Lifts

Nifty Lift 01

Niftylift track drive cherry pickers have working heights ranging from 12m (40ft) to over 17m (56ft). Combining the capabilities of trailer mounted and self propelled booms, Nifty track drive cherry pickers are compact, lightweight and manoeuvrable. Driven from the platform while stowed, they offer maximum traction on steep gradients and hydraulic outriggers allow fast setup and operation even on rough terrain.

Easy to use proportional controls make Nifty track drive cherry pickers simple to operate and features such as telescopic booms, fly-booms and platform rotation maximise their effectiveness on any task.

Nifty track drive cherry pickers are diesel powered but also allow the use of mains power for booms operation once in the machine is setup in position.

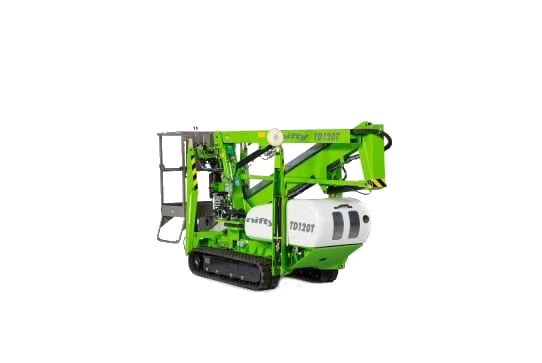

TD120T

The TD120T track drive access platform offers an impressive working envelope from a compact base with outstanding traction.

The TD120T track drive access platform delivers 60% gradeability with excellent traction on steep or rough terrain.

Also available are rubber-free urethane tracks, the TD120T track drive access platform  is ideal for internal or clean applications, increasing the number of locations that the TD120T track drive access platform can work, greatly improving its utilisation.

Maximum Working Height

12.20 m

Maximum Working Outreach

6.10 m

Machine Dimensions

L 3.95 m, H 1.90 m, W 1.10 m

Working Width

3.55 m

Cage Width and Depth

1.10 m, 0.65 m

Safe Working Load

200 kg

Travel Speed

1.6 km/h

Gradeability & Maximum Slope

60% / 31° & 13% / 7.6°

Machine Weight

1890 kg

Power Options

Diesel & Mains

TD150T

The TD150T track drive access platform offers exceptional all-round performance from such a compact and low weight base, and with a 225kg safe-working-load, plenty of capacity for tools as well.

Weight-saving design means that site-to-site transportation is more economical and the TD150T track drive access platform is also more efficient, allowing it to work for longer while using less fuel.

The TD150T track drive access platform is also available with rubber-free urethane tracks. Ideal for internal or clean applications, these tracks will increase the number of locations that the TD150T track drive access platform can work, greatly improving its utilisation.

Maximum Working Height

14.70 m

Maximum Working Outreach

7.55 m

Machine Dimensions

L 4.70 m, H 2.00 m, W 1.40 m

Working Width

3.80 m

Cage Width and Depth

1.40 m, 0.70 m

Safe Working Load

225 kg

Travel Speed

2.1 km/h

Gradeability & Maximum Slope

 45% / 24° & 21% / 12°

Machine Weight

2025 kg

Power Options

Diesel & Mains
